1.Brief introduction:
Marine winch are usually hydraulic power modes, which are also called hydraulic winches. Construction winch and mine winch are also hydraulic power driven, widely used in life. Working stable, start quickly, low noise, etc is hydraulic winches’ special advantage. Hydraulic winch’s main system: oil pump system, winch, hydraulic pump, oil pump. Hydraulic power is the main power mode in winch.
2. Marine winch Specification:
a.Load capacity: From 0.5 ton to 500 ton
b.Working Speed: Standard speed 2.5-30 meter per minute or Customized.
c.Usage: construction, boat, mine, bridge, building, road, crane, port, building, etc.
d.Hydraulic pump station brand: Self-made or Chinese famous brand.
e.Wire rope capacity: 10-8000m or Customized.
f.Color: As per customer’s demand.
g.Paintings: 3 layers anti-corrosion paintings
3.Our advantage and features of Marine winch
a.Few factory can produce.
b.We have professional designers.
c.Rich experience in export all kinds of winch.
d.Can provide overseas services.
e.All kinds of winch can be customized for you.
4. Packaging and shipping
|
OEM |
Yes |
|---|---|
|
MOQ |
1 PCS Hydraulic Winch |
|
Port |
Qingdao, Shanghai, Tianjin or other China main port. |
|
Payment |
L/C,T/T |
|
30% advance payment, 70% paid before shipment |
|
|
Packing |
Five-layer plywood boxes |
|
Shipping |
1)By air or sea or combined transportation. 2)Express: FEDEX,UPS,DHL,EMS. |
5. Our service
Pre-sale Service:
1.Chose suitable machine for you or items design according to your demand.
2.Provide all relevant documents, drawing and knowledge.
Sale service:
1.Process supervision and production information provide.
2.Give the operating instruction.
After-sale service:
1.One year warranty.
2.Free accessories provide due to quality problem.
3.Whole using life’s free repair(don’t include the freight and accessories charge)
6. lectotype parameter
a.Hydraulic winch mode.
b.Lifting capacity?(Ton/KN)
c.Wire rope information: capacity and diameter?(m,mm)
d.Working rating speed?(m/min)
e.Weather need Hydraulic pump station?
f.Power ?(V/HZ/Phrase)
g.Working environment?
h.Any other special requirements?
Please try to confirm the above information, if difficult to you, please see the specification table for your reference or tell us your questions. We will choose a suitable products for you.

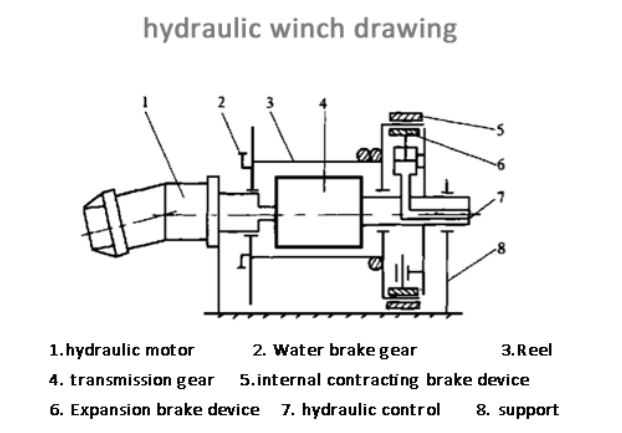

Hydraulic winch drawing
Parameter of hydraulic winch
| Model | Chain Drum | Rotation drum | Motor power | Overall Dimensions(mm) | ||||
|---|---|---|---|---|---|---|---|---|
| Chain dia.(mm) | Load (KN) | Speed (m/min) | Load (KN) | speed (m/min) | Rope Size (mmxm) | KW | AxBxCxDxE | |
| KH54 | 54 | 123.93 | 9 | 80 | 15 | 70x200 | 55 | 5335x2770x905x820x3480 |
| KH56 | 56 | 133.38 | 9 | 80 | 15 | 70x200 | 55 | 5335x2770x905x820x3480 |
| KH58 | 58 | 142.97 | 9 | 80 | 15 | 70x200 | 55 | 5380x2880x905x820x3500 |
| KH60 | 60 | 153 | 9 | 80 | 15 | 70x200 | 55 | 5380x2880x905x820x3500 |
| KH66 | 66 | 185.13 | 9 | 100 | 15 | 80x220 | 75 | 6590x3110x1130x950x3710 |
| KH68 | 68 | 196.52 | 9 | 100 | 15 | 80x220 | 75 | 6590x3110x1130x950x3710 |
| KH70 | 70 | 208.52 | 9 | 125 | 15 | 80x220 | 75 | 6910x3300x1200x1050x3980 |
| KH73 | 73 | 226.48 | 9 | 125 | 15 | 80x220 | 75 | 6910x3300x1200x1050x3980 |
| KH76 | 76 | 245.48 | 9 | 125 | 15 | 80x220 | 90 | 6910x3480x1200x1050x4100 |
| KH78 | 78 | 258.57 | 9 | 125 | 15 | 80x220 | 90 | 6910x3480x1200x1050x4100 |
Lectotype parameter
1.Which kinds of hydraulic winch? (Hydraulic anchor winch,mooring winch,towing winch,capstan winch for your reference)
2.Loading capacity? (Ton/KN)
3.Wire rope capacity and diameter? (m,mm)
4.Working speed?(m/min);
5.Do you need provide Hydraulic pump station?
6.Power supply? (220V~440V,50HZ or 60HZ,single or three phase.or customized)
7.Working environment?
8.Any other special requirements?
