Shipbuilding Gantry Crane

Shipbuilding Gantry Crane
Shipbuilding gantry crane with large lifting capacity, large span, multiple functions and high efficiency, is specially used for docks (or berths) to conduct segmental transportation of large hulls, butt and turning operation. It has three forms of structure, such as single trolley, shifting double trolley, and upper, lower trolley.

Main technical features:
1.It has multiple functions like single hoisting, hoisting, suspending turning, and horizontal micro-shift in air.
2.The structure is classified as single beam or double beam for user selection; the beam adopts the optimal design of variable cross-section to use the material reasonable.
3.The rigid leg of gantry crane has the types of single column and double column for user selection;
4.The upper trolley has two main hook, which are placed the external sides of the main beam and can shift laterally 0-2m Independently or simultaneously
5.Generally, the main hoisting and trolley running adopts variable frequency speed control.
6.At the side of the rigid leg, the beam has a maintenance crane on the top so as to complete trolley`s maintenance operation;
7.A boarding elevator can be set up at the side of the rigid leg as user required.
8.To prevent storm attach, there sets up safe and reliable devices against wind, including rail clamp, ground anchor and anchor chain.

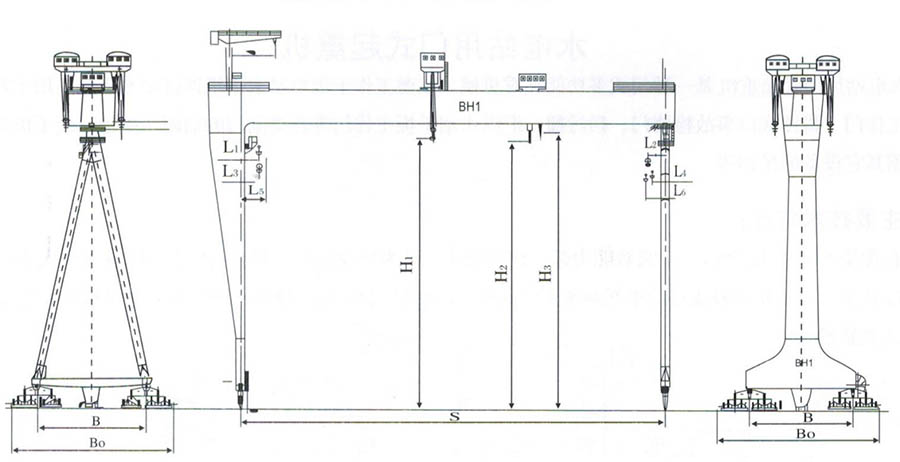

2*25t+50/10t ~ 2*100t+160/32t shipbuilding gantry crane

Load Capacity					t	2×25t+50/10t	2×25t+75/20t	2×75t+80/20t	2×100t+160/32t
Joint lifting crane					t	100	150	200	300
air turning						50	100	150	200
Working class						A5
Span （m）						50	60	80	100
Lifting height （m） Rail/under rail				H₁		30/4	40/5	45/5	60/6
				H₂		30/4	40/5	45/5	60/6
				H₃		32	42	47	62
Speed	Lifting	Top Trolley		m/min		0.75-7.5；0.75-15（light）	0.6-6；0.6-12（light）	0.5-5；0.5-10（light）	0.5-5；0.5-10（light）
		Bottom Trolley	Main hook			0.75-7.5；0.75-15（light）	0.6-6；0.6-12（light）	0.5-5；0.5-10（light）	0.5-5；0.5-10（light）
		Bottom Trolley	Aux hook			12	15	15	15
	Travelling	Top Trolley				0.42-42	0.42-42	0.5-20；0.5-30	0.5-20；0.5-30
		Bottom Trolley				0.42-42	0.42-42	0.5-20；0.5-30	0.5-20；0.5-30
		Crane				0.5-20；0.5-30	0.5-20；0.5-30	0.5-20；0.5-30	0.5-20；0.5-30
Main size （mm）				L₁		30000	3600	4000	4000
				L₂		30000	3600	4000	4000
				L₃		2700	3500	3500	3500
				L₄		3500	5000	5000	5000
				L₅		4200	5500	5500	5000
				L₆		1800	3000	3000	3500
				B		13500	14500	18000	24000
				B_o		24000	25000	32000	36000
Weight （t）						≈540	≈750	≈870	≈1650
Max wheel pressure （KN）						350	430	480	620
Motor total power （KW）						≈350	≈410	≈460	≈780
Rail recommended						QU100-QU120
Power supply						3-phase 50Hz 380v or 50Hz 6-10KV

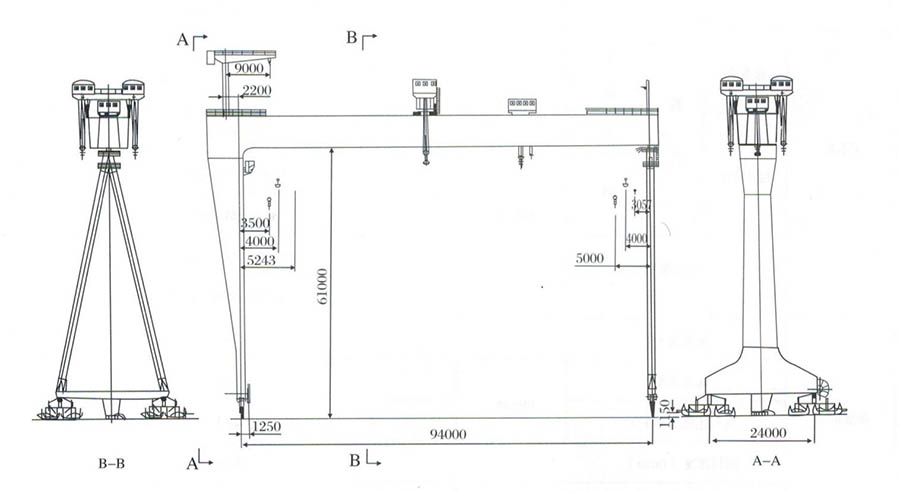

300t shipping gantry crane

Load Capacity	Two car lifting crane			t	300（Hook distance≥11m）
Load Capacity	Segmented flip lifting			t	200
Span×basal spur				m	94×24
Lifting height				m	60+6
Crane travelling speed （m/min）					0.6-20（wind＜14m/s）
Crane travelling speed （m/min）					0.6-30（wind＜8m/s）
Max wheel pressure KN					520
Crane rail					QU120
installed capacity KW					860
Top Trolley	Load Capacity t				2×100（Two hook hanging load tolerance≤50t）
	Lifting speed			m/min	0.2-5 full load
	Lifting speed				0.2-10（50% full load）
	Travelling speed				0.6-20（wind ＜14m/s）
	Travelling speed				0.6-30（wind ＜8m/s）
Bottom Trolley	Load Capacity	Lifting	Main	t	150
	Load Capacity		Aux	t	30
	Lifting speed		Main	m/min	0.2-5 full load
			Aux		0.2-10（50% full load）
			Aux		10（three-step timing）
	Travelling speed				0.6-20（wind＜14m/s）
	Travelling speed				0.6-30（wind＜8m/s）
Maintenance crane	Load Capacity t				10
	Lifting speed			m/min	8034
	Travelling speed（Trolley）			m/min	20.4
	Slewing speed （r/min）				0.96
	Slewing angle （°）				270
Power supply					3-phase 10KV 50Hz

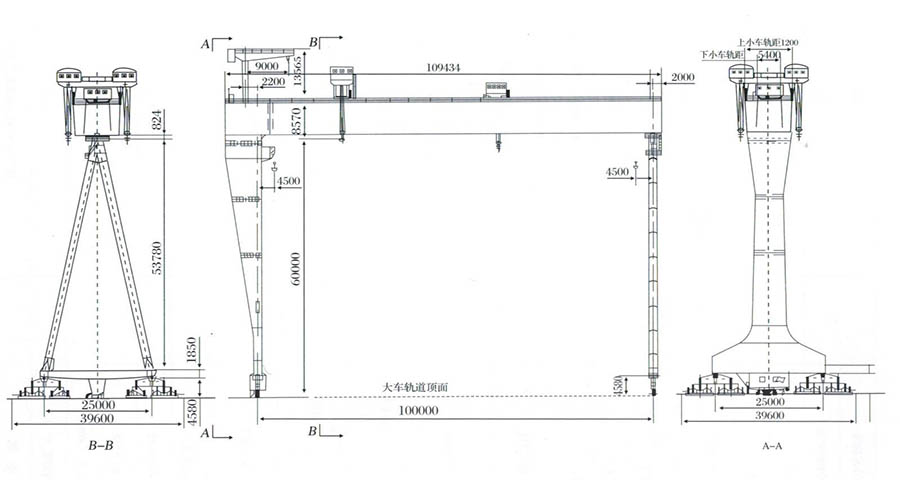

370t shipbuilding gantry crane

Load Capacity	Two car lifting crane		t	370
Load Capacity	Segmented flip lifting		t	300
Span×basal spur			m	100×25
Lifting height			m	60
Crane travelling speed （m/min）				0.6-20（wind＜14m/s）
Max wheel pressure KN				520
Crane rail				QU120
installed capacity KW				950
Top Trolley	Load Capacity t			2×150（Two hook hanging load tolerance≤75t）
	Lifting speed		m/min	0.35-3.5（full load）
	Lifting speed			0.35-7（50% full load）
	Travelling speed			0.6-19.65（wind＜14m/s）
	Travelling speed			0.6-30（wind＜8m/s）
Bottom Trolley	Main lifting	Load Capacity	t	300
		Speed	m/min	0.35-3.5（full load）
		Speed		0.35-7（50% full load）
	Travelling speed			0.6-19.65（wind＜14m/s）
	Travelling speed			0.6-30（wind＜8m/s）
Maintenance crane	Load Capacity t			10
	Lifting speed		m/min	8.34
	Travelling speed		m/min	20.4
	Slewing speed （r/min）			0.6
	Slewing angle （°）			270
	Power supply			DC 24 KV Electric start high-speed diesel generator

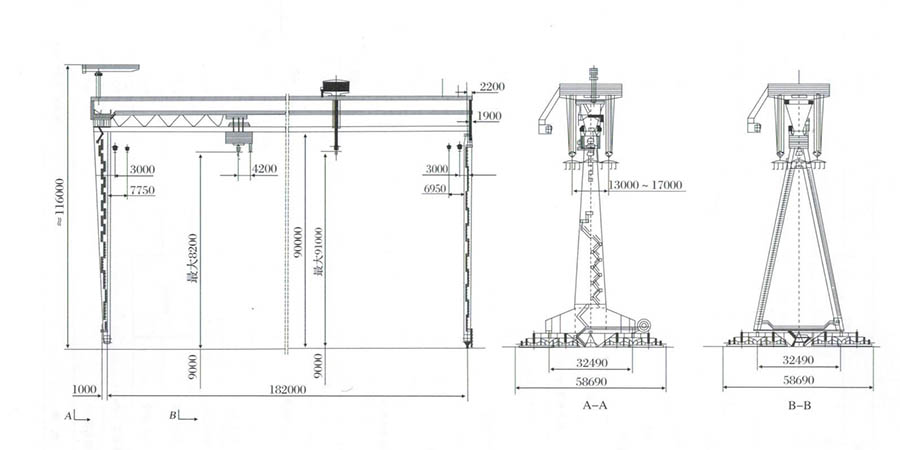

600t shipbuilding gantry crane

Load Capacity			t	600
Roll over weight			t	600
Span m				182
Travelling speed （m/min）				0-35（full load）
Travelling speed （m/min）				0-45（no-load，wind＜15m/s）
Working class				A3
Max wheel pressure KN				2500
Crane rail				QU120
Top Trolley	Load Capacity t			2×300
	Lifting speed m/min			0-30（full load）
	Lifting height m			91+9
	Travelling speed		m/min	0-30（full load）
	Travelling speed		m/min	0-45（no-load，wind＜15m/s）
Bottom Trolley	Load Capacity	Main	t	400
	Load Capacity	Aux	t	20
	Lifting height m			82+9
	Lifting speed	Main	m/min	0-3（full load）
	Lifting speed	Aux		0-20
	Travelling speed			0-30（full load）
	Travelling speed			0-45（no-load，wind＜15m/s）
Maintenance crane	Load Capacity t			10
	Lifting height m			112
	Lifting speed		m/min	8.38
	Travelling speed		m/min	9.55
	Slewing speed （r/min）			0.5
	Slewing angle （°）			360
	Power supply			3-phase 10KV 50Hz
