- Description
- Parameters
The blue mark parameters are indispensable to be provided by buyer

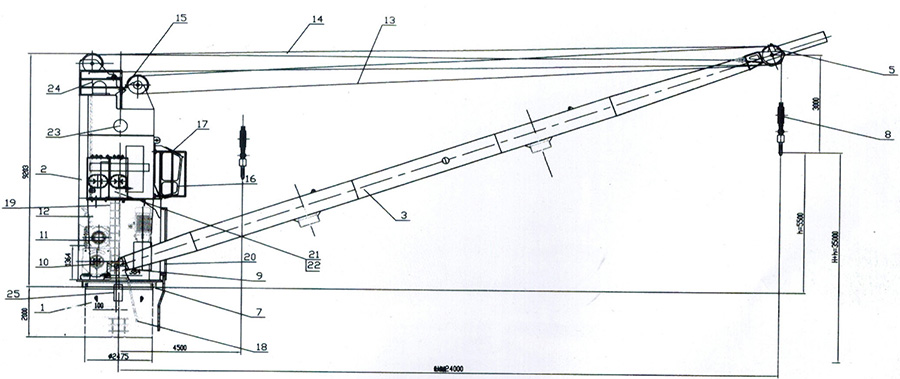

There Deck Crane Technical Specification Attached for Reference
Please try to confirm the above information, if difficult to you, please see the specification table for your reference or tell us your questions. We will choose a suitable products for you.Thanks and Best Regards !
The main parameter
SWL: 25t
Max working radius : 24m
Min working radius : 4.5m
Lifting speed : 25t×16m/min
10t×25m/min
Slewing speed : 0.6r/min
Luffing time: 60s
Lifting height : 35m
Power of e-motor : 132kw（S1）
Power source : 350v/50Hz/3P
Heel/trim: 5°/2°
|
Type |
Safety working load (N) |
Max working Red (m) |
Min working Red (m) |
Hoisting Speed (m/min) |
Slewing Speed (r/min) |
Luffing Time (s) |
Hoisting Height (m) |
Slewing Angle |
Trim/ Heel |
Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|
|
YQ1 |
10 |
6~12 |
1.3~2.6 |
15 |
1 |
60 |
30 |
360 |
2/5 |
7.5 |
|
YQ1.5 |
15 |
8~14 |
1.7~3 |
15 |
1 |
60 |
30 |
360 |
2/5 |
11 |
|
YQ2 |
20 |
5~15 |
1.1~3.2 |
15 |
1 |
60 |
30 |
360 |
2/5 |
15 |
|
YQ3 |
30 |
8~18 |
1.7~3.8 |
15 |
0.9 |
70 |
30 |
360 |
2/5 |
22 |
|
YQ5 |
50 |
12~20 |
2.5~4.2 |
15 |
0.75 |
80 |
30 |
360 |
2/5 |
37 |
|
YQ8 |
80 |
12~20 |
2.5~4.2 |
15 |
0.75 |
100 |
30 |
360 |
2/5 |
55 |
|
YQ10 |
100 |
12~20 |
2.5~4.2 |
15 |
0.75 |
110 |
30 |
360 |
2/5 |
75 |
|
YQ15 |
150 |
12~20 |
2.5~4.2 |
15 |
0.6 |
110 |
30 |
360 |
2/5 |
90 |
|
YQ20 |
200 |
16~25 |
3.2~5.3 |
15 |
0.6 |
120 |
35 |
270 |
2/5 |
75*2 |
|
YQ25 |
250 |
20~30 |
3.2~6.3 |
15 |
0.5 |
130 |
40 |
270 |
2/5 |
90*2 |
|
YQ30 |
300 |
30 |
3.2~6.3 |
15 |
0.4 |
140 |
40 |
270 |
2/5 |
90*2 |
|
YQ35 |
350 |
20~35 |
4.2~7.4 |
15 |
0.5 |
150 |
45 |
360 |
2/5 |
110*2 |
|
YQ40 |
400 |
20~35 |
4.2~7.4 |
15 |
0.5 |
150 |
45 |
360 |
2/5 |
140*2 |
|
YQ45 |
450 |
25~40 |
5.3~8.5 |
15 |
0.45 |
160 |
50 |
360 |
2/5 |
140*2 |
|
YQ50 |
500 |
25~40 |
5.3~8.5 |
15 |
0.45 |
170 |
50 |
360 |
2/5 |
165*2 |
