- Description
- Parameters
Deck Crane
Deck Crane Parameters
▪ Load capacity(SWL):5-100T
▪ Lifting Height(m): 5m-30m
▪ Working radius(m):6-35m
▪ Slewing speed: 0.5r/min
▪ Luffing time:125s
▪ Lifting speed: 20m/min
▪ Power supply: 380V,50HZ, 3Phase
Deck Crane Characters
▪ Equipped with hydraulic oil cooler, can work in high temperature environment
▪ Installed can and lighting system, can work in the rain and at night
▪ Specially for buck cargo, work frequency
Purchase guide
▪ Load capacity/SWL (T)?
▪ Lifting Height (m)
▪ Max. Working radius (m)
▪ Min. Working radius (m)
▪ Slewing speed (r/min)
▪ Luffing time (s)
▪ Power supply ( V?HZ? Phase?)
The blue mark parameters are indispensable to be provided by buyer There Deck Crane Technical Specification Attached for Reference

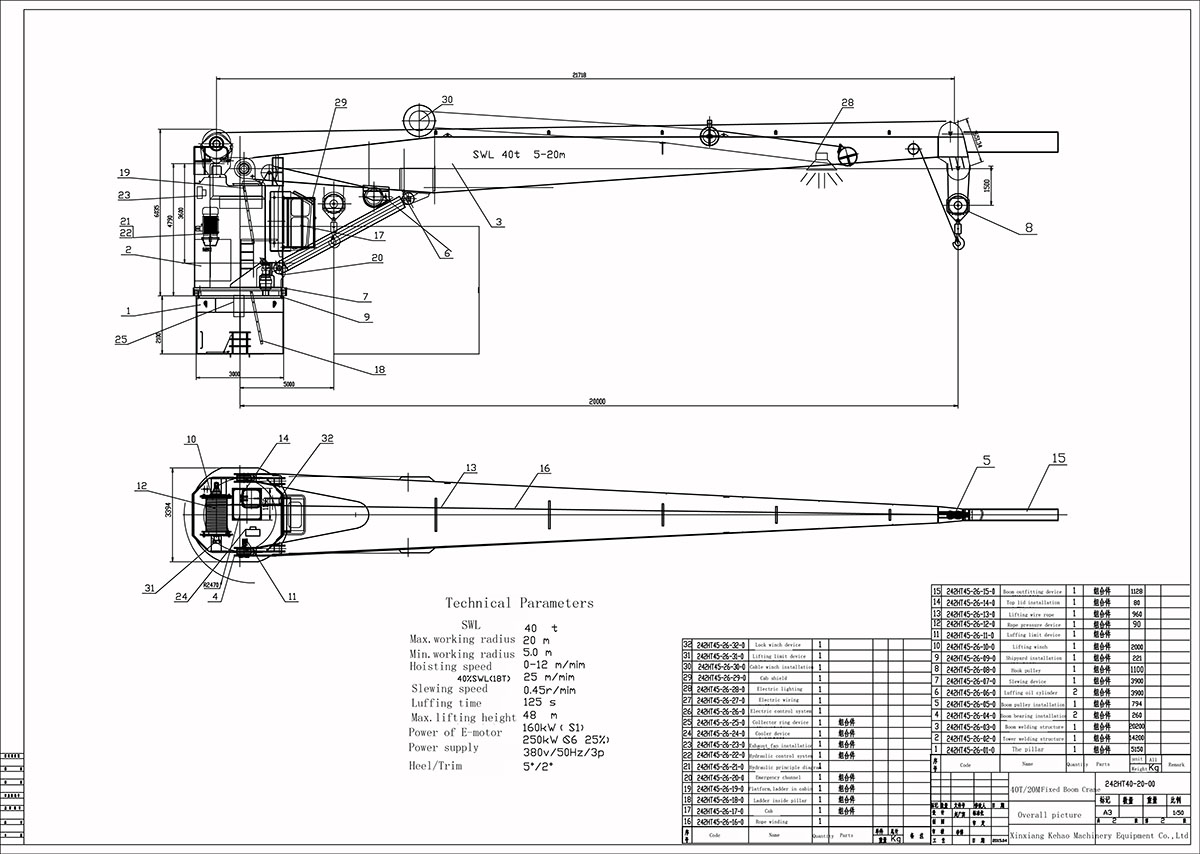

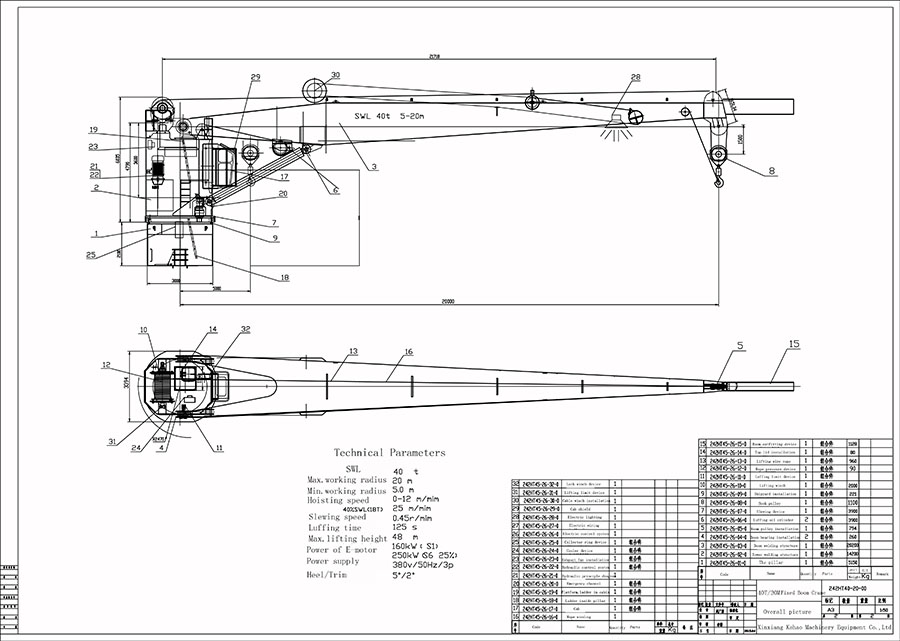

Deck crane drawing
Deck Crane Technical Specification
|
Type |
Safety working load (N) |
Max working Red (m) |
Min working Red (m) |
Hoisting Speed (m/min) |
Slewing Speed (r/min) |
Luffing Time (s) |
Hoisting Height (m) |
Slewing Angle |
Trim/ Heel |
Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|
|
YQ1 |
10 |
6~12 |
1.3~2.6 |
15 |
1 |
60 |
30 |
360 |
2/5 |
7.5 |
|
YQ1.5 |
15 |
8~14 |
1.7~3 |
15 |
1 |
60 |
30 |
360 |
2/5 |
11 |
|
YQ2 |
20 |
5~15 |
1.1~3.2 |
15 |
1 |
60 |
30 |
360 |
2/5 |
15 |
|
YQ3 |
30 |
8~18 |
1.7~3.8 |
15 |
0.9 |
70 |
30 |
360 |
2/5 |
22 |
|
YQ5 |
50 |
12~20 |
2.5~4.2 |
15 |
0.75 |
80 |
30 |
360 |
2/5 |
37 |
|
YQ8 |
80 |
12~20 |
2.5~4.2 |
15 |
0.75 |
100 |
30 |
360 |
2/5 |
55 |
|
YQ10 |
100 |
12~20 |
2.5~4.2 |
15 |
0.75 |
110 |
30 |
360 |
2/5 |
75 |
|
YQ15 |
150 |
12~20 |
2.5~4.2 |
15 |
0.6 |
110 |
30 |
360 |
2/5 |
90 |
|
YQ20 |
200 |
16~25 |
3.2~5.3 |
15 |
0.6 |
120 |
35 |
270 |
2/5 |
75*2 |
|
YQ25 |
250 |
20~30 |
3.2~6.3 |
15 |
0.5 |
130 |
40 |
270 |
2/5 |
90*2 |
|
YQ30 |
300 |
30 |
3.2~6.3 |
15 |
0.4 |
140 |
40 |
270 |
2/5 |
90*2 |
|
YQ35 |
350 |
20~35 |
4.2~7.4 |
15 |
0.5 |
150 |
45 |
360 |
2/5 |
110*2 |
|
YQ40 |
400 |
20~35 |
4.2~7.4 |
15 |
0.5 |
150 |
45 |
360 |
2/5 |
140*2 |
|
YQ45 |
450 |
25~40 |
5.3~8.5 |
15 |
0.45 |
160 |
50 |
360 |
2/5 |
140*2 |
|
YQ50 |
500 |
25~40 |
5.3~8.5 |
15 |
0.45 |
170 |
50 |
360 |
2/5 |
165*2 |
