LXB Electric Single Girder Suspension Explosion-proof Overhead Crane
LXB single girder suspension overhead crane together with BCD explosion-proof electric hoist is a complete set to lift the goods, which has the advantages of explosion-proof crane and suspension crane. It is used in the working environment that has the explosive gas. Some Basic Parameters for your reference as below:
▪ Lifting capacity: 0.5ton, 1ton, 2ton, 3ton, 5ton, 10ton
▪ Span: 3m~16m
▪ Lifting height: 6m, 9m, 12m, 18m, 24m, 30m
▪ Lifting speed: 8/0.7m/min
▪ Crane traveling speed: 20m/min, 30m/min
▪ Electric hoist type: CD MD

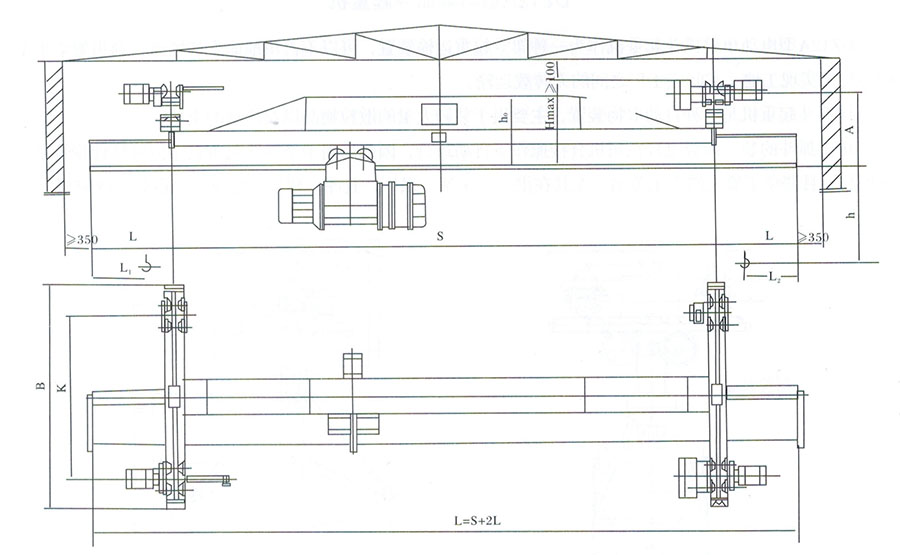

Overhead crane drawing
| Load capacity | t | 0.5 1 2 3 | 5 | |||
|---|---|---|---|---|---|---|
| Ex-mark | d II BT4 | |||||
| operation type | Control from floor | |||||
| Crane travelling mechanism | Travelling speed | m/min | 20 | 20 | ||
| Motor | Type | BZDY | ||||
| Power | Kw | 2×0.4 | 2×0.8 | |||
| Rotate speed | r/min | 1380 | ||||
| Electric hoist | Type | BCD | ||||
| Lifting height | 6-30 | |||||
| Lifting speed | m | 3.5 | ||||
| Travelling speed | m/min | 20 | ||||
| Working class | m/min | A3-A4 | ||||
| Power supply | 50Hz | |||||
| Wheel diameter | Φ130 | Φ150 | ||||
| apply to rail I-steel | 20a-36c | 28a-45c | ||||
