- Description
- Parameters
1. Single Girder Grab Overhead Crane
▪ The Lifting weight of the grab overhead crane according to grade of grab bucket, it can be used in different industries because the grab bucket can lift different materials.
The grab grade and lift material for your reference.
|
Type |
Material |
Material capacity (T/m³) |
|---|---|---|
|
Light |
Coke, slag, Cereals, potatoes, lime, cement blocks in anthracite, dirt, gravel, clay, brick |
0.5--1.2 |
|
Medium |
Peat, the bulk of anthracite, coal, limestone, clay compaction, gravel, salt, |
>1.2--2.0 |
|
Heavy |
Limestone, clay, a small piece of ore, hard rock, stick on shaped iron oxide, iron ore, lead ore concentrate |
>2.0--2.6 |
|
Super Heavy |
Lump ore, manganese ore, bulk deposition of ore powder caking |
>2.6 |
2. Single Girder Grab Overhead Crane
▪ Lifting capacity: 3ton, 5ton,
▪ Lifting height: 18m
▪ Lifting speed:16m/min
▪ Crane traveling speed: 30m/min, 75m/min
3.3~5ton Single Girder Grab Overhead Crane Features:
▪ New design and standard
▪ Reliable quality and little noise
▪ Cost low and service in time
▪ Excellent performance and installation convenient

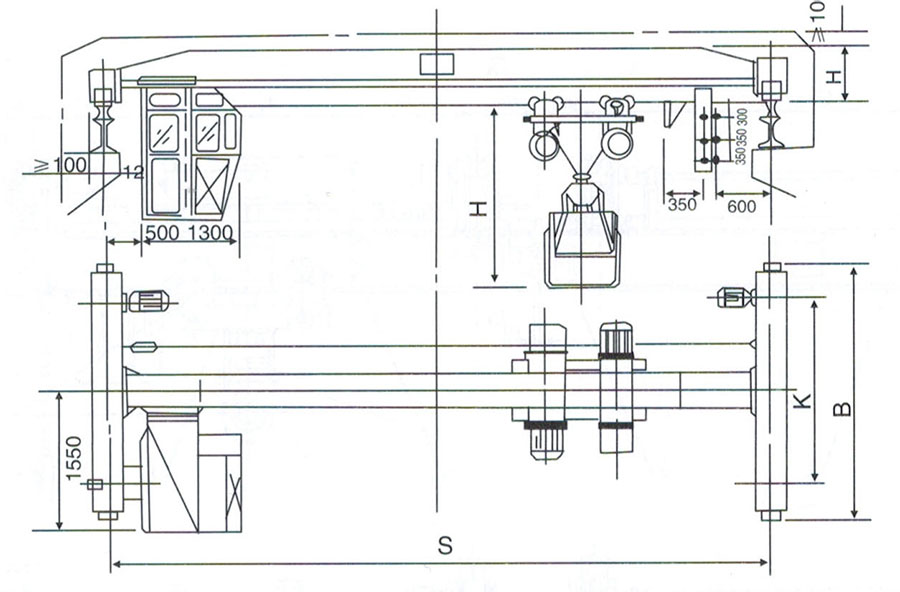

Single girder overhead crane drawing
| Load capacity（t） | 3 | 5 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lifting height（m） | 18 | 18 | ||||||||||||||||||
| Lifting speed（m/min） | 16 | 16 | ||||||||||||||||||
| Material ratio | ≤1 | ≤1 | ||||||||||||||||||
| Working class | A3 | A3 | ||||||||||||||||||
| Travelling speed （m/min） | Crane | 30（ground）：75（cab） | 30（ground）：75（cab） | |||||||||||||||||
| Trolley | 20:30 | 20:30 | ||||||||||||||||||
| Grab | Type | Weight（t） | Capacity（m2） | Type | Weight（t） | Capacity（m2） | ||||||||||||||
| 201 | 2.3 | 0.75 | 301 | 3.1 | 1.5 | |||||||||||||||
| Motor | Application | Type | Power（kw） | rotate speed（r/min） | Type | Power（kw） | rotate speed（r/min） | |||||||||||||
| Lifting | ZD132-4 | 4.5 | 1380 | ZD141-4 | 7.5 | 1400 | ||||||||||||||
| Open close | ZD132-4 | 4.5 | 1380 | ZD141-4 | 7.5 | 1400 | ||||||||||||||
| Crane travelling | ZDY121-4 | 2×0.8/2×1.5 | 1380 | ZDY121-4 | 2×0.8/2×1.5 | 1380 | ||||||||||||||
| Ground/cab | ZDR100-4 | ZDR100-4 | ||||||||||||||||||
| Trolley travelling | ZDY121-4 | 2×0.8 | 1380 | ZDY121-4 | 2×0.8 | 1380 | ||||||||||||||
| Span （m） | 7.5 | 9 | 10.5 | 12 | 13.5 | 15 | 16.5 | 19.5 | 22.5 | 7.5 | 9 | 10.5 | 12 | 13.5 | 15 | 16.5 | 19.5 | 22.5 | ||
| Crane total weight（t） | Ground | 4.18 | 4.33 | 4.48 | 4.68 | 4.89 | 5.55 | 5.75 | 6.85 | 7.13 | 5.24 | 5.41 | 5.58 | 6.12 | 6.37 | 6.89 | 7.12 | 7.67 | 8.75 | |
| Cab | 4.58 | 4.73 | 4.88 | 5.08 | 5.29 | 5.95 | 6.15 | 6.98 | 7.53 | 5.64 | 5.81 | 5.98 | 6.52 | 6.77 | 7.29 | 7.52 | 8.07 | 9.15 | ||
| Max wheel pressure（KN） | Ground | 21.5 | 21.9 | 22.3 | 22.8 | 23.4 | 25 | 25.5 | 28 | 29.4 | 32.8 | 33.2 | 33.6 | 35 | 35.7 | 37 | 37.6 | 39.3 | 42 | |
| Cab | 24.5 | 24.9 | 25.3 | 25.8 | 26.4 | 28 | 28.5 | 31 | 32.4 | 35.8 | 36.2 | 36.3 | 38 | 38.7 | 40 | 40.6 | 42.3 | 45 | ||
| Basic size (mm) | K | 2000 | 2500 | 3000 | 2000 | 2500 | ||||||||||||||
| B | 2500 | 3000 | 3500 | 2500 | 3000 | |||||||||||||||
| H | -3670 | -3630 | ||||||||||||||||||
| H1 | 530 | 580 | 660 | 745 | 820 | 580 | 660 | 785 | 820 | 875 | ||||||||||
