L Type Single Girder Gantry Crane With Hook
Home > Products > Overhead Crane > Electromagnetic Overhead Crane
  • Description
  • Parameters

1.L type Single Girder Gantry Crane with trolley
▪ L type gantry crane with trolley is generally used in the open-air place and warehouse loading and unloading material. Because of lading lag only one, it can increase the working area and suit for loading the large size goods. And hook is divided to main hook and aux hook, engineer can design the weight of the hook according users requirements. This product has two forms of ground operation and indoor operation, if need, can operate with remote control.

2. L type Trolley Single Girder Gantry Crane Parameters:
▪ Lifting capacity: 5ton 10ton 16/3.2ton 20/5ton 32/5ton
▪ Span: 18m, 22m, 26m, 30m, 35m
▪ Lifting height: 11m, 12m
▪ Working environment temperature: -20℃ ~ +40℃
▪ Lifting speed:7.6m/min ~ 12.5m/min
▪ Trolley travelling speed: 38.6m/min~40.4m/min
▪ Crane travelling speed: 46.2m/min~54m/min

3. L type gantry crane with hook characteristics:
▪ Reasonable structure, smooth running.
▪ operate convenient, safe and reliable;
▪ Cost low and quality reliable
▪ Working cover the entire working area, the geosynclines and hook are controlled quick.

4.Trade Terms & Packaging
▪ Payment terms: FOB, CFR and CIF are common trade terms. 30%T/T in advance, the balance paid  before shipment or irrevocable L/C.
▪ Delivery time: within 15 ~30 business day after the receipt of deposit.
▪ Packaging: wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship after packing.
▪ Transportation: generally 5 days to 10 days to destination port.

5.Safety feature
▪ Weight overload protection device
▪ Lifting height limit device
▪ Voltage lower protection function
▪ Phase sequence protection function
▪ Emergency stop function

6.After sales-services
▪ 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
▪ 2 years spare-parts provided for better maintenance.
▪ Professional technical staffs provide installation, commissioning and training services.
▪ Delivery with English user manual, parts manual, product certification and other relevant certificates.
▪ Technical advisory for any time.

7. Purchase Guide
1.Load capacity:                     (max goods weight)
2.Span:
3. Lifting height:
4. Working voltage:                (phase, voltage, Hz )
5. Traveling distance:
6. Rail supply:                         supply or not from us ?
7. Quantity:
8. Destination port:
9. More requirements:

Please try to confirm the above information, if difficult to you, please see the specification table for your reference or tell us your questions. We will choose a suitable products for you. Thanks and Best Regards!

  • L Type Single Girder Gantry Crane With Hook 10+10
  • L Type hook Single Girder Gantry Cranes 13+13
  • L Type Single Girder Gantry Cranes 16+16
  •
  •
Load capacity(t) 10+10 (Trolley Rotate) 13+13 (Trolley Rotate) 16+16(Trolley Rotate)
Working class A6
Span m 22.5 28.5 16.5 19.5 22.5 25.5 28.5 315 28.5 31.5
Lifting height 9 11
Speed Lifting M6 m/min 13.1 15.8
Trolley travelling M5 26.5 3 26.5 41.9
Crane Travelling M6 89.1 76.7 59.4 60.1 101
Slewing Mechanism M5 r/min 1.64 3.7
Motor Lifting M6 Type/kw YZR315M-10/75 YZR335M-10/90
Trolley travelling M5 ZDR112L1-4/2.2×2 YZR160M1-6/5.5 ZDR112L1-4/2.2×2 YZR200L-8/15
Crane Travelling M5 ZDR112L1-4/2.2×2 YZR180L-8/11
Slewing mechanism M6 YZR160L-6/11×2 YZR225M-8/22×2 YZR160L-6
/11×2
YZR180L-6/7.5×2 YZR250M-8/37×2
Electomagnetic chuck 14095GH LMR-19065CH
Lifting weight T 5.5×2   7x2 10×2
weight 3.4×2 2.23×2
Length m 1400 1900
width 950 650
height 1345 1380
Toatl power kw 125.6 148.7 125.6 133.6 203.6
Weight trolley t 16.9 17.1 19.1 124.5 128.5
total 56.5 68.8 58.4 61.3 64.2 68.5 71.8 76.4 280 290
Max Wheel Pressure   KN 255 275 256 275 290 300 310 320

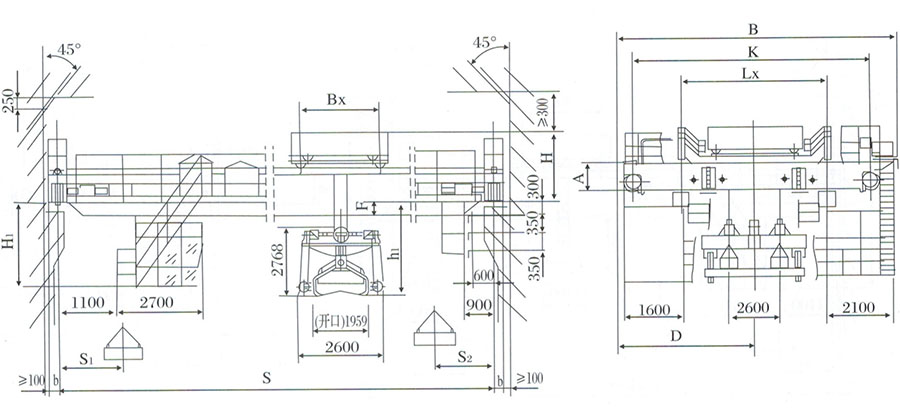

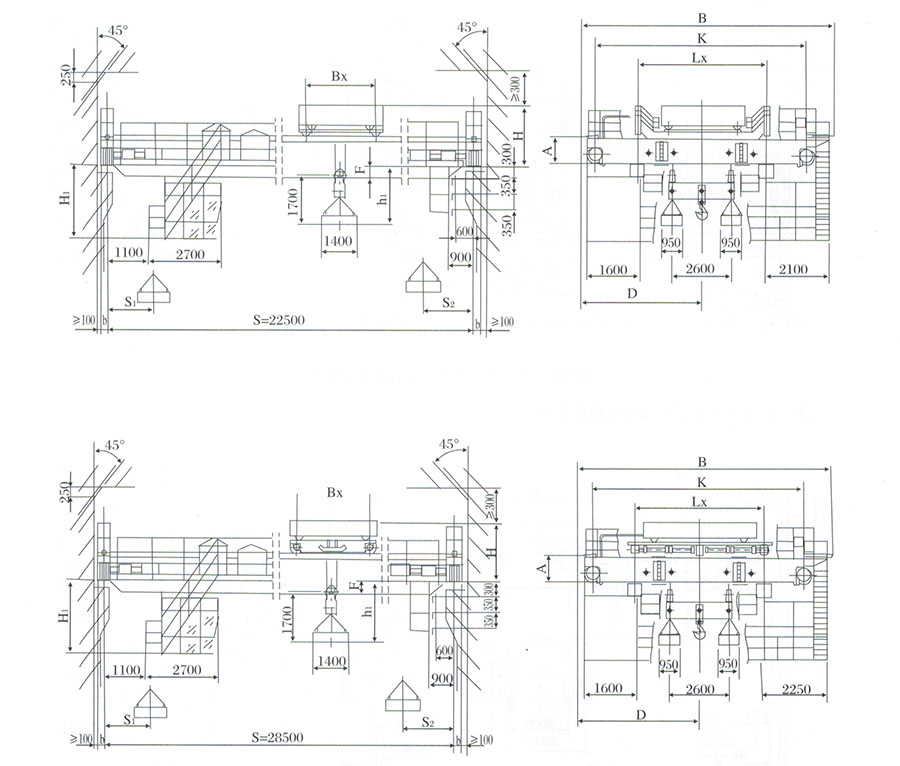

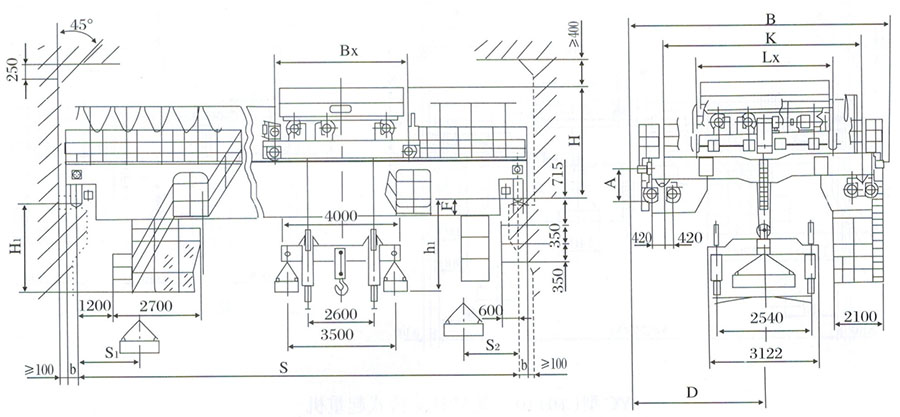

Main parameters H mm 2600 3150 2625 5380
H1 3066 3087 2661 2881 3011 3113 3117 2771
A 860 1035 1300
LX 5200 4800
b 230 260 300 370
R 7600 6840
BX 4460 4900 4460 6080
B 9960 9400 9926
F 743 764 338 488 688 790 794 448
h1 2500 4000 3327
S1 2500 3440
S2 2500 3240
D 4680 4400 4963
Track Rail Recommended 43kg/m  50kg/m   QU70 QU120
Power supply 3-phase  380V   50Hz
