PDJ Balance crane can be flexible in three-dimensional space lifting heavy weights, widely used in factory workshop, machine loading and unloading, process, automatic production line, the production line of the lifting, assembly, station, wharf, warehouse and so on various occasions, has the advantages of compact structure, reliable operation, low noise, flexible and durable.
Related information about PDJ Balance crane and PDJ Balance crane Parameters, Please see the other page Parameter, thanks!
|

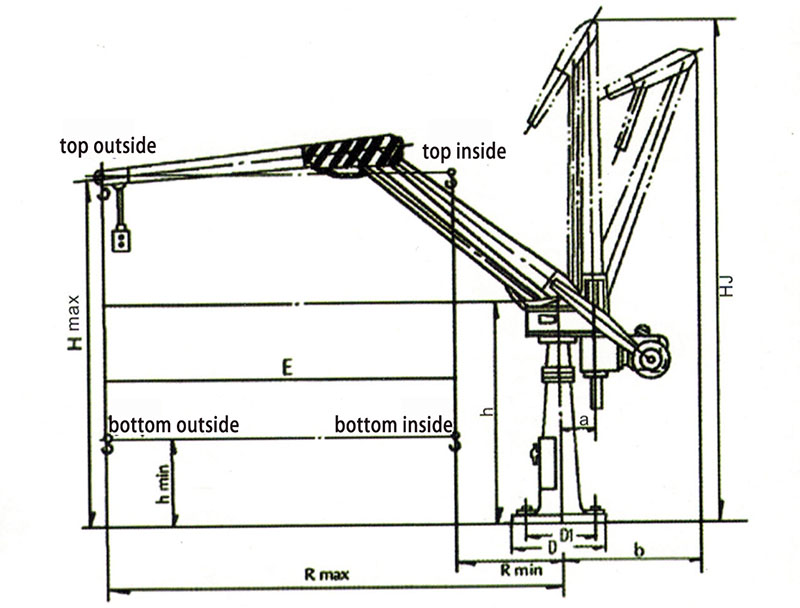

Item |
Type |
|||||
|---|---|---|---|---|---|---|
|
PJ010 |
PJ020 |
PJ030 |
PJ040 |
PJ050 |
PJ060 |
|
|
Load capacity (kg) |
100 |
200 |
300 |
400 |
500 |
600 |
|
H max (mm) |
2000 |
2000 |
2000 |
2000 |
2500 |
2500 |
|
H min (mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Lifting luffing (mm) |
1500 |
1500 |
1500 |
1500 |
2000 |
2000 |
|
Rmax (mm) |
2500 |
2500 |
2500 |
2500 |
3000 |
3000 |
|
Rmin (mm) |
580 |
770 |
770 |
770 |
1000 |
1000 |
|
Level luffing |
1920 |
1730 |
1730 |
1730 |
2200 |
2200 |
|
Rotary angle (°) |
345 |
345 |
345 |
345 |
345 |
345 |
|
Lifting speed (m/min) |
6.14 |
5.44 |
5.52 |
5.56 |
5.08 |
5.08 |
