1.Double Girder Gantry Crane Application
▪ This series of products widely used in open storage, loading and unloading operations yard, railway freight station, port cargo area.
▪ It can also be equipped with a variety of professional conduct some special dedicated spreader.
▪ the gantry crane has the advantage: high space utilization, wider range of operation, adaptation of wide and strong commonality.

2. MG Gantry Crane Parameters:
▪ Lifting capacity: 5ton, 10ton, 16/3.2ton, 20/5ton, 32/5ton, 50/10ton, 80/20ton,
▪ Span: 18m, 22m, 26m, 30m, 35m
▪ Lifting height: 10m, 11m
▪ Working environment temperature: -20℃ ~ +40℃
▪ Lifting speed:7.2m/min ~ 11.4m/min
▪ Trolley travelling speed: 38.3m/min, 43.8m/min, 44.6m/min
▪ Crane travelling speed: 34.5m/min, 40.1m/min, 47.1m/min

3. MG gantry crane characteristics:
▪ With box-type double-beam welded structure, to increase work space and easy transportation,installation and maintenance.
▪ The Trolley uses a conductive profiled rail cable conduction means.
▪ The parts standardization, serialization, universal.
▪ The form of power supply have cable reel (divided into left and right) and a trolley wire (divided into left and right), it can be choosed by the users.
▪ Cab vision, equipped linkage console, flexible balance operating comfort. Provided also add fans, air heaters, air coolers, air conditioners, radio, etc. according to user requirements.

4.Trade Terms & Packaging
▪ Payment terms: FOB, CFR and CIF are common trade terms. 30%T/T in advance, the balance paid before shipment or irrevocable L/C.
▪ Delivery time: within 25 ~30 business day after the receipt of deposit.
▪ Packaging: wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship after packing.
▪Transportation: generally 5 days to 10 days to destination port.

5.Safety feature
▪ Weight overload protection device
▪ Lifting height limit device
▪ Voltage lower protection function
▪ Phase sequence protection function
▪ Emergency stop function

6.After sales-services
▪ 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
▪ 2 years spare-parts provided for better maintenance.
▪ Professional technical staffs provide installation, commissioning and training services.
▪ Delivery with English user manual, parts manual, product certification and other relevant certificates.
▪ Technical advisory for any time.

7. Purchase Guide
1.Load capacity:                     (max goods weight)
2.Span:
3. Lifting height:
4. Working voltage:                (phase, voltage, Hz )
5. Traveling distance:
6. Rail supply:                        supply or not from us ?
7. Quantity:
8. Destination port:
9. More requirements:

Please try to confirm the above information, if difficult to you, please see the specification table for your reference or tell us your questions. We will choose a suitable products for you. Thanks and Best Regards!

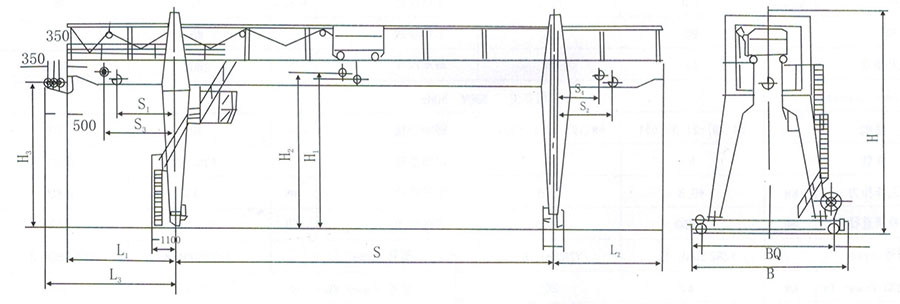

MG gantry crane drawing

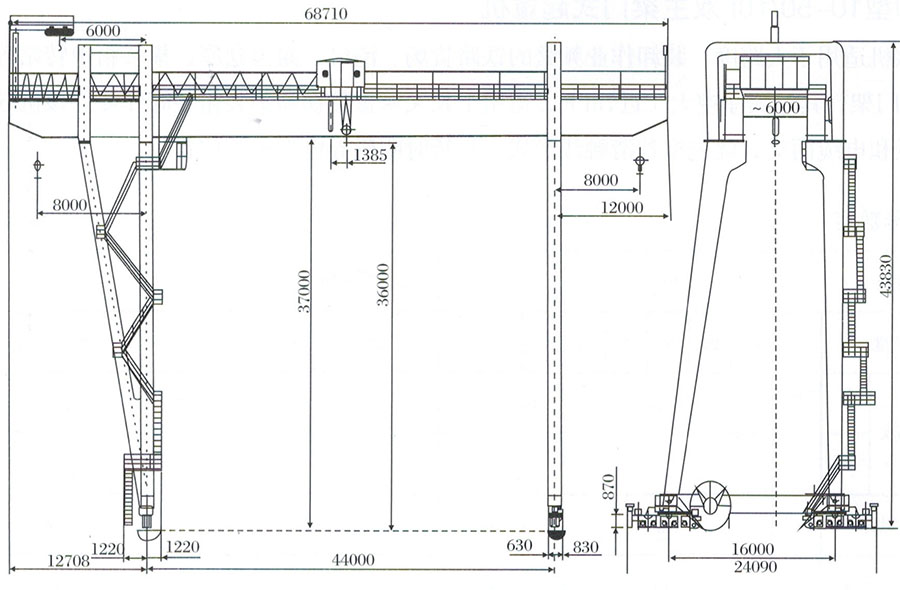

MG 80t double girder gantry crane
