U Double Girder Gantry Crane
Home > Products > Gantry Crane > Double Girder Gantry Crane
  • Description
  • Parameters

1. U Type 10ton--50/10ton Double Girder Gantry Crane
▪ It applies to large span, frequent loading and unloading rail on freight yard, the port, open storage, container depots and so on.
▪ The machine uses a U-shaped door frame, which is too big leg clearance (nearly 7 meters) for heavy goods grown and container handling operations.
▪ The aircraft conducting form of the trolley line and cable types, the first priority trolley line form, clear conductive form and position when ordering.

2. U Type Gantry Crane Parameters:
▪ Lifting capacity: 10ton, 16ton, 20/10ton, 32/16ton, 50/10ton
▪ Span: 18m, 22m, 26m, 30m, 35m
▪ Lifting height: 10.5m, 11.5m, 12m
▪ Working environment temperature: -20℃ ~ +40℃
▪ Lifting speed:6m/min ~ 18.4m/min
▪ Trolley travelling speed: 38.13m/min, 41.9m/min, 44.5m/min, 51m/min
▪ Crane travelling speed: 43.8m/min, 51.2m/min, 54.6m/min

3. U Type gantry crane characteristics:
▪ With box-type double-beam welded structure, to increase work space and easy transportation,installation and maintenance.
▪ the Trolley uses a conductive profiled rail cable conduction means.
▪ The parts standardization, serialization, universal.
▪ The form of power supply have cable reel (divided into left and right) and a trolley wire (divided into left and right), it can be choosed by the users.
▪ Cab vision, equipped linkage console, flexible balance operating comfort. Provided also add fans, air heaters, air coolers, air conditioners, radio, etc. according to user requirements.

4.Trade Terms & Packaging
▪ Payment terms: FOB, CFR and CIF are common trade terms. 30%T/T in advance, the balance paid before shipment or irrevocable L/C.
▪ Delivery time: within 30~35 business day after the receipt of deposit.
▪ Packaging: wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship after packing.
▪ Transportation: generally 5 days to 10 days to destination port.

5.Safety feature
▪ Weight overload protection device
▪ Lifting height limit device
▪ Voltage lower protection function
▪ Phase sequence protection function
▪ Emergency stop function

6. After sales-services
▪ 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
▪ 2 years spare-parts provided for better maintenance.
▪ Professional technical staffs provide installation, commissioning and training services.
▪ Delivery with English user manual, parts manual, product certification and other relevant certificates.
▪ Technical advisory for any time.

7. Purchase Guide
1. Load capacity:                    (max goods weight)
2. Span:
3. Lifting height:
4. Working voltage:                (phase, voltage, Hz )
5. Traveling distance:
6. Rail supply:                        supply or not from us ?
7. Quantity:
8. Destination port:
9. More requirements:

Please try to confirm the above information, if difficult to you, please see the specification table for your reference or tell us your questions. We will choose a suitable products for you. Thanks and Best Regards!

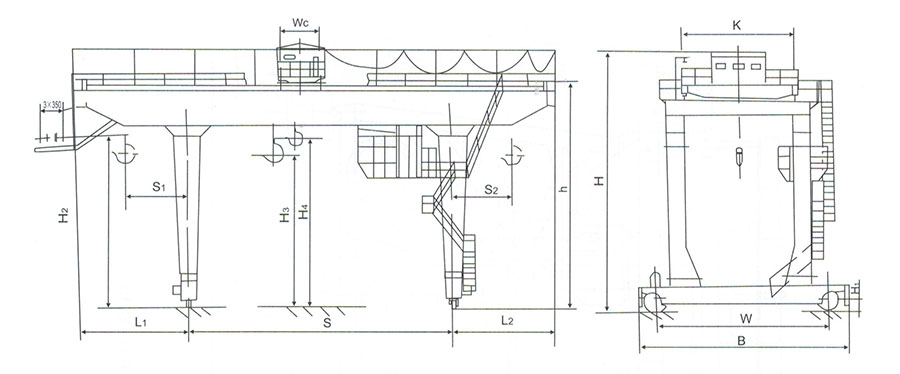

Gantry crane drawing
Load Capacity (t) 10 16 20/10 32/10 36/16 50/10
Span m 18 22 26 30 35 18 22 30 18 22 26 30 35 22 26 22 26 30 35 32
Lifting height main 11.5 10.5 12 10.5 11.5 11.5 12
aux     11 12 12 13
Working class   A5 A5-A6 A5 A5-A6 A5-A6
speed lifting Main m/min 18.4 12.3 9.2 10.4 10.4 6
Aux     18.4 18.4 12.3 18
Travelling Trolley 43.8 44.5 44.5 41.9 51 38.13
Crane 54.6 48.4 51.2 49.1 51.2 48 51.2 51.2 51.2 43.8
Motor lifting Main Type/Kw YZR250M1-8/30 YZR250M1-8/30 YZR250M1-8/30 YZR250M1-10/45 YZR315S-10/55 YZR315S-10/55
Aux     YZR250M1-8/30 YZR250M1-8/30 YZR250M1-8/30 YZR250M1-8/30
Travelling Trolley YZR132M-6/2.2×2 YZR132M2-6/3.7×2 YZR132M2-6/3.7×2 YZR132M2-6/3.7×2 YZR160M1-6/5.5×2 YZR132M2-6/3.7×2
Crane YZR160L-6/11×2 YZR200L-8/15×2 YZR200L-8/15×2 YZR200L-8/15×2 YZR200L-8/15×2 YZR180L-8/11×2 YZR180L-8/11×4
Weight Trolley t 9 9.5 12 16 18 24
Crane 63.2 67.2 84 78 83.4 106 79 85 99 112 132 125 130 118 132 148 159 204
Max wheel pressure(KN) 225 235 295 353 373 255 295 304 245 295 314 324 334 314 334 354 363 295
Steel track recommended(kg/m) 43 50
Power supply 3-phase AC 380v 50Hz
H mm 14440 14740 14960 14660 14560 14660 14550 15360 16000 16260 17160
H1 1000 1000 1100 1100 1100 1350
H2 6400 8400 11000 9400 10000 11000
H3 11500 10500 10500 11500 11500 12000
H4     11000 12000 12000 13000
h 12000 13000 12250 1200 13205 12000 12100 12000 12622 12800     14200
L1 8750 9750 10500 11500 8000 9000 9500 8000 9000 9500 9500 10500 14000
L2 8750 9750 10500 11500 8000 9000 9500 8000 9000 9500 9500 10500 14000
S1 6500 7500 8000 9000 5500 6500 7500 5500 6500 7500 7000 7500 11000
S2 6500 7500 8000 9000 5500 6500 7500 5500 6500 7000 7000 7500 11000
B 11240 12530 11990 10820 11990 11800 11990 11750 11750 11040 12920
W 9150 9230 8500 9500 8500 9500 8500 8010 8010 8210 8210
K 7000 7000 7000 7000 7000 7000
Wc 2100 2100 2600 2600 2600 3100
