L Type Single Girder Gantry Crane With Hook
Home > Products > Gantry Crane > Box Structure Gantry Crane
  • Description
  • Parameters

1.L type Single Girder Gantry Crane with trolley
▪ L type gantry crane with trolley is generally used in the open-air place and warehouse loading and unloading material. Because of lading lag only one, it can increase the working area and suit for loading the large size goods. And hook is divided to main hook and aux hook, engineer can design the weight of the hook according users requirements. This product has two forms of ground operation and indoor operation, if need, can operate with remote control.

2. L type Trolley Single Girder Gantry Crane Parameters:
▪ Lifting capacity: 5ton 10ton 16/3.2ton 20/5ton 32/5ton
▪ Span: 18m, 22m, 26m, 30m, 35m
▪ Lifting height: 11m, 12m
▪ Working environment temperature: -20℃ ~ +40℃
▪ Lifting speed:7.6m/min ~ 12.5m/min
▪ Trolley travelling speed: 38.6m/min~40.4m/min
▪ Crane travelling speed: 46.2m/min~54m/min

3. L type gantry crane with hook characteristics:
▪ Reasonable structure, smooth running.
▪ operate convenient, safe and reliable;
▪ Cost low and quality reliable
▪ Working cover the entire working area, the geosynclines and hook are controlled quick.

4.Trade Terms & Packaging
▪ Payment terms: FOB, CFR and CIF are common trade terms. 30%T/T in advance, the balance paid  before shipment or irrevocable L/C.
▪ Delivery time: within 15 ~30 business day after the receipt of deposit.
▪ Packaging: wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship after packing.
▪ Transportation: generally 5 days to 10 days to destination port.

5.Safety feature
▪ Weight overload protection device
▪ Lifting height limit device
▪ Voltage lower protection function
▪ Phase sequence protection function
▪ Emergency stop function

6.After sales-services
▪ 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
▪ 2 years spare-parts provided for better maintenance.
▪ Professional technical staffs provide installation, commissioning and training services.
▪ Delivery with English user manual, parts manual, product certification and other relevant certificates.
▪ Technical advisory for any time.

7. Purchase Guide
1.Load capacity:                     (max goods weight)
2.Span:
3. Lifting height:
4. Working voltage:                (phase, voltage, Hz )
5. Traveling distance:
6. Rail supply:                         supply or not from us ?
7. Quantity:
8. Destination port:
9. More requirements:

Please try to confirm the above information, if difficult to you, please see the specification table for your reference or tell us your questions. We will choose a suitable products for you. Thanks and Best Regards!


Gantry crane design
Load capacity Main t 5 10 16 20 32
Aux     3.2 5 5
Span m 18 22 26 30 35 18 22 26 30 35 18 22 26 30 35 18 22 26 30 35 18 22 26 30 35
Lifting height Main 11 12 12 12 12
Aux 16 12 12
Working system A5(intermediate) A5(intermediate) A5(intermediate) A5(intermediate) A5(intermediate)
Speed Lifting Main m/min 12.5 9.82 9.7 9.3 7.6
Aux 22.25 19.8 19.8
Trolley travelling 39.5   40.4 39.7 39.7 38.6
Crane travelling 46.2 39.5 40 39.5 40 39.5 40 39.5 48.3 48 49 54
Motor Lifting Main Type/kw YZR160L-6/11 YZR200L-816 YZR225M-8/22 YZR250M1 YZR280M-10/45
Aux YZR160L-6/11 YZR200L-8/15 YZR200L-8/15
Trolley travelling YZR132M16/2.2 YZR132M2-6/3.7 YZR160M1-6/5.5 YZR160M1-6/5.5 YZR160M2-6/7.5
Crane travelling YZR160M-6/2×5.5 YZR160M1-6/2×5.5 YZR160L-6/2×11 YZR160M2-62×/7.5 ZR160L-6/2×11 YZR160M2-62×/7.5 ZR160L-6/2×11 YZR160M2-62×/7.5 YZR160L-6/2×11 YZR200L-8/2×15 ZR160L-6/2×11 YZR200L-8/2×15
Weight Trolley     kg 2600 3989 7171 8635 12700
Total weight 27501 30441 37615 44162 49491 38899 42658 45214 52312 58647 46819 49932 55058 66666 68318 50016 54773 60357 72772 76236 66760 68842   85900 100562
Max wheel pressure 13000 13700 15700 18300 19600 19600 20700 21700 24000 25600 29400 29700 31000 34400 35800 32900 33900 35700 40000 43700 46760 46760   27000 29000
Steel rail type 38Kg/m 43Kg/m 43Kg/m 43Kg/m
Power supply 3-phase AC 380v 50Hz

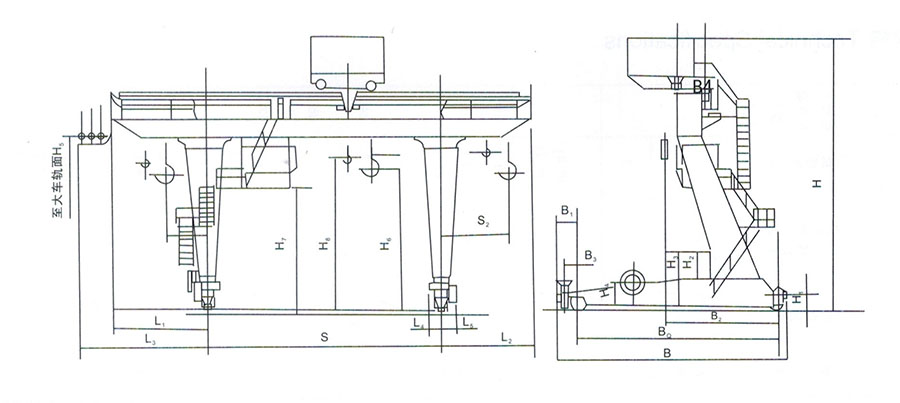

Load Capacity Span Basic dimensions (mm)
( t) (m) S1 S2/ L1 L2 L3 L4 L5 BQ B B1 B2 B3 B4 H H1 H2 H3 H4 H5 H6 H7 H8
5 18 5000 5000 6717 6717 8074 591.5 664 6000 7490 602 3870 493 879 12899 660 577 728 1820 1480 9610 10000 6647
22 647.5
26 622.5 732 7000 8529 608 4428 553 979 1428 2778 1580   6847
30 7000 7000 8717 8717 10074 652.5 4430 1129 13889 10360 11000 7647
35 1229 7447
10 18 5000 5000 7027 7027 8380 622.5 732 7000 8529 608 4310 553 1030 13545 660 1483 2763 1580 9950 10000 7251
22
26 1130
30 652.5 7500 9029 4596 2985 1680
35 7000 7000 9027 9027 10380 1330 14545 10950 11000 7551
16/3 18 5000 5000 7217 7217 8572 622.5 732 7000 8529 608 4310 553 1030 13545 660 1528 2878   9940
22 1230
26 652.5 7500 9029 4596 3030 9780
30 7000 7000 9217 9217 10512 1330 14765
35 10780
20/5 18 5000 5000 7934 7234 9280 622.5 732 7500 9029 608 4596 553 1230 13795 660 1528 3030 1680 9950 10000 6950 10000
22
26 7000 7000 9934 9234 11280 832.5 875 8000 9725 736 4796 611 1330 6850
30 800 3060 1780
32/5 18 5000 5000 8006 8006 9386 890 600 8000 10192 9198 599 5135   1151 14152 785 1520 3224 1925 14152 10850 7226 10000
22 812 1146
26 1501 15152 557 2330 11300 11850 7826 11000
30     8500 10692
35 7000 7000 10006 10006 11380
