- Description
- Parameters
Specification
|
Model |
Capacity |
Lifting speed(m/min) |
Motor power(kw) |
Lifting height (m) |
Lifting ratio |
Working class FEM/ISO |
|---|---|---|---|---|---|---|
|
KLG20250 |
0.25 |
2.0/8.0 |
0.09/0.36 |
3-8 |
1/1 |
1Am/M4 |
|
KLG20320 |
0.32 |
2.0/8.0 |
0.18/0.75 |
1/1 |
3m/M6 |
|
|
KLG20500 |
0.5 |
2.0/8.0 |
0.18/0.75 |
1/1 |
1Am/M4 |
|
|
KLG20630 |
0.63 |
2.5/10 |
0.45/1.90 |
2/1 |
2m/M5 |
|
|
KLG31000 |
1 |
2.5/10 |
0.45/1.90 |
1/1 |
1Bm/M3 |
|
|
KLG31500 |
1.5 |
1.25/5.0 |
0.75/3.0 |
1/1 |
1Am/M4 |
|
|
KLG32000 |
2 |
1.25/5.0 |
0.45/1.90 |
2/1 |
1Am/M4 |
|
|
KLG32500 |
2.5 |
1.25/5.0 |
1.2/4.8 |
1/1 |
1Am/M4 |
|
|
KLG33000 |
3 |
1.25/5.0 |
0.75/3.0 |
2/1 |
1Am/M4 |
|
|
KLG35000 |
5 |
1.25/5.0 |
1.2/4.8 |
2/1 |
1Am/M4 |

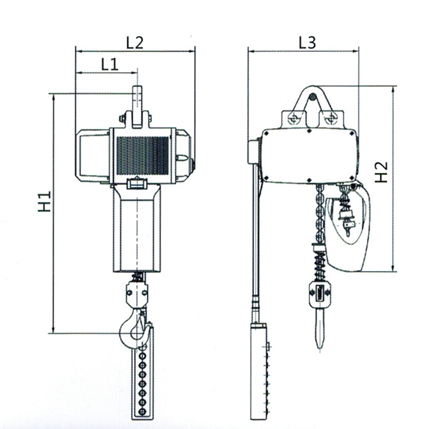

Dimension
|
Model |
Capacity |
Rated voltage(V) |
Dimension(m) |
||||
|---|---|---|---|---|---|---|---|
|
L1 |
L2 |
L3 |
H1 |
H2 |
|||
|
KLG20250 |
0.25 |
3 phase 380V-50Hz |
165 |
327 |
360 |
515 |
567 |
|
KLG20320 |
0.32 |
||||||
|
KLG20500 |
0.5 |
||||||
|
KLG20630 |
0.63 |
196 |
375 |
460 |
595 |
588 |
|
|
KLG31000 |
1 |
||||||
|
KLG31500 |
1.5 |
225 |
425 |
560 |
760 |
610 |
|
|
KLG32000 |
2 |
196 |
375 |
460 |
670 |
551 |
|
|
KLG32500 |
2.5 |
266 |
520 |
680 |
820 |
620 |
|
|
KLG33000 |
3 |
225 |
425 |
560 |
760 |
590 |
|
|
KLG35000 |
5 |
266 |
520 |
680 |
820 |
600 |
|
