- Description
- Parameters
Single speed
|
Type |
Load capacity（t） |
Standard lifting height（m） |
Lifting speed（m/min） |
Lifting motor |
Chain falls |
Chain specification |
Test load（t） |
Weight（kg） |
Weight added with m higher（kg） |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Power（kw） |
Rotation speed（r/min） |
Phases |
Voltage（v） |
Frequency（Hz） |
|||||||||
|
KMH-00501SF |
0.5 |
3 |
6.8 |
0.75 |
1440 |
3 |
200-440 |
50 |
1 |
Φ6.3 |
0.625 |
47 |
0.81 |
|
KMH-01001SF |
1 |
3 |
6.6 |
1.5 |
1440 |
3 |
200-440 |
50 |
1 |
Φ7.1 |
1.25 |
61 |
1.1 |
|
KMH-01002SF |
1 |
3 |
3.4 |
0.75 |
1440 |
3 |
200-440 |
50 |
2 |
Φ6.3 |
1.25 |
52 |
1.62 |
|
KMH-01501SF |
1.5 |
3 |
8.8 |
3.0 |
1440 |
3 |
200-440 |
50 |
1 |
Φ10.0 |
1.875 |
108 |
2.3 |
|
KMH-02001SF |
2 |
3 |
6.6 |
3.0 |
1440 |
3 |
200-440 |
50 |
1 |
Φ10.0 |
2.5 |
115 |
2.3 |
|
KMH-02002SF |
2 |
3 |
3.3 |
1.5 |
1440 |
3 |
200-440 |
50 |
2 |
Φ7.1 |
2.5 |
73 |
2.2 |
|
KMH-02501SF |
2.5 |
3 |
5.4 |
3.0 |
1440 |
3 |
200-440 |
50 |
1 |
Φ11.2 |
3.125 |
116 |
2.8 |
|
KMH-03001SF |
3 |
3 |
5.4 |
3..0 |
1440 |
3 |
200-440 |
50 |
1 |
Φ11.2 |
3.75 |
122 |
2.8 |
|
KMH-03002SF |
3 |
3 |
4.4 |
3.0 |
1440 |
3 |
200-440 |
50 |
2 |
Φ10.0 |
3.75 |
131 |
4.7 |
|
KMH-05002SF |
5 |
3 |
2.7 |
3.0 |
1440 |
3 |
200-440 |
50 |
2 |
Φ11.2 |
6.25 |
151 |
5.6 |
Dual speed
|
Type |
Load capacity（t） |
Standard lifting height（m） |
Lifting speed（m/min） |
Lifting motor |
Chain falls |
Chain specification |
Test load（t） |
Weight（kg） |
Weight added with m higher（kg） |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Power（kw） |
Rotation speed（r/min） |
Phases |
Voltage（v） |
Frequency（Hz） |
|||||||||
|
KMH-00501DF |
0.5 |
3 |
6.9/2.3 |
0.8/0.27 |
2890/980 |
3 |
200-440 |
50 |
1 |
Φ6.3 |
0.625 |
47 |
0.81 |
|
KMH-01001DF |
1 |
3 |
6.9/2.3 |
1.8/0.6 |
2890/980 |
3 |
200-440 |
50 |
1 |
Φ7.1 |
1.25 |
61 |
1.1 |
|
KMH-01002DF |
1 |
3 |
3.5/1.2 |
0.8/0.27 |
2890/980 |
3 |
200-440 |
50 |
2 |
Φ6.3 |
1.25 |
52 |
1.62 |
|
KMH-01501DF |
1.5 |
3 |
8.9/2.9 |
3.0/1.0 |
2890/980 |
3 |
200-440 |
50 |
1 |
Φ10.0 |
1.875 |
108 |
2.3 |
|
KMH-02001DF |
2 |
3 |
6.8/2.3 |
3.0/1.0 |
2890/980 |
3 |
200-440 |
50 |
1 |
Φ10.0 |
2.5 |
115 |
2.3 |
|
KMH-02002DF |
2 |
3 |
3.3/1.1 |
1.8/0.6 |
2890/980 |
3 |
200-440 |
50 |
2 |
Φ7.1 |
2.5 |
73 |
2.2 |
|
KMH-02501DF |
2.5 |
3 |
5.4/1.8 |
3.0/1.0 |
2890/980 |
3 |
200-440 |
50 |
1 |
Φ11.2 |
3.125 |
116 |
2.8 |
|
KMH-03001DF |
3 |
3 |
5.4/1.8 |
3.0/1.0 |
2890/980 |
3 |
200-440 |
50 |
1 |
Φ11.2 |
3.75 |
122 |
2.8 |
|
KMH-03002DF |
3 |
3 |
4.5/1.5 |
3.0/1.0 |
2890/980 |
3 |
200-440 |
50 |
2 |
Φ10.0 |
3.75 |
131 |
4.7 |
|
KMH-05002DF |
5 |
3 |
2.7/0.9 |
3.0/1.0 |
2890/980 |
3 |
200-440 |
50 |
2 |
Φ11.2 |
6.25 |
151 |
5.6 |

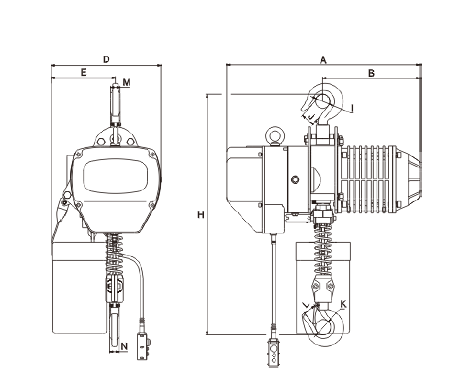

Size specification single speed
|
Type |
H |
A |
B |
D |
E |
I |
J |
K |
L |
M |
N |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMH-00501SF |
550 |
460 |
230 |
280 |
160 |
Φ35 |
25 |
Φ35 |
25 |
17 |
17 |
|
KMH-01001SF |
650 |
520 |
260 |
300 |
176 |
Φ40 |
31 |
Φ40 |
31 |
22 |
22 |
|
KMH-01002SF |
670 |
460 |
230 |
280 |
205 |
Φ40 |
31 |
Φ40 |
31 |
22 |
22 |
|
KMH-01501SF |
800 |
615 |
295 |
430 |
265 |
Φ47 |
40 |
Φ47 |
38 |
30 |
30 |
|
KMH-02001SF |
800 |
615 |
295 |
430 |
265 |
Φ47 |
40 |
Φ47 |
38 |
30 |
30 |
|
KMH-02002SF |
835 |
520 |
260 |
300 |
236 |
Φ47 |
38 |
Φ47 |
38 |
30 |
30 |
|
KMH-02501SF |
845 |
615 |
295 |
430 |
265 |
Φ58 |
47 |
Φ58 |
47 |
36 |
36 |
|
KMH-03001SF |
845 |
615 |
295 |
430 |
265 |
Φ58 |
47 |
Φ58 |
47 |
36 |
36 |
|
KMH-03002SF |
950 |
615 |
295 |
430 |
320 |
Φ58 |
47 |
Φ58 |
47 |
36 |
36 |
|
KMH-05002SF |
1030 |
615 |
295 |
430 |
325 |
Φ60 |
48 |
Φ60 |
48 |
43 |
43 |
Dual speed
|
Type |
H |
A |
B |
D |
E |
I |
J |
K |
L |
M |
N |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMH-00501DF |
550 |
545 |
260 |
280 |
160 |
Φ35 |
28 |
Φ35 |
25 |
17 |
17 |
|
KMH-01001DF |
650 |
582 |
280 |
300 |
176 |
Φ40 |
31 |
Φ40 |
31 |
22 |
22 |
|
KMH-01002DF |
670 |
545 |
260 |
280 |
205 |
Φ40 |
31 |
Φ40 |
31 |
22 |
22 |
|
KMH-01501DF |
800 |
670 |
313 |
430 |
265 |
Φ47 |
40 |
Φ47 |
38 |
30 |
30 |
|
KMH-02001DF |
800 |
670 |
313 |
430 |
265 |
Φ47 |
40 |
Φ47 |
38 |
30 |
30 |
|
KMH-02002DF |
835 |
582 |
280 |
300 |
236 |
Φ47 |
38 |
Φ47 |
38 |
30 |
30 |
|
KMH-02501DF |
845 |
670 |
313 |
430 |
265 |
Φ58 |
47 |
Φ58 |
47 |
36 |
36 |
|
KMH-03001DF |
845 |
670 |
313 |
430 |
265 |
Φ58 |
47 |
Φ58 |
47 |
36 |
36 |
|
KMH-03002DF |
950 |
670 |
313 |
430 |
320 |
Φ58 |
47 |
Φ58 |
47 |
36 |
36 |
|
KMH-05002DF |
1030 |
670 |
313 |
430 |
325 |
Φ60 |
48 |
Φ60 |
48 |
43 |
43 |
