Grab Bucket

Grab Bucket is widely used in port, wharf, station yard, zeros tone mine to lift buck cargo, log, mineral, coal, earth-rock and so on.
▪ Grab crane is a kind of automatic picking up machinery,operated by driver.No need auxiliary personnel.
▪ To avoid the manual labor,save time and Greatly improve the efficiency.
▪ Main categories: hydraulic grab, log grab, wire rope grab and wireless remote control grab.

Grab bucket parameters:
▪ Lifting capacity: 1~120ton
▪ Conventional bucket volume:0.1 m³～20 m³
▪ Working environment temperature: -20℃ ~ +40℃

1. Hydraulic grab bucket

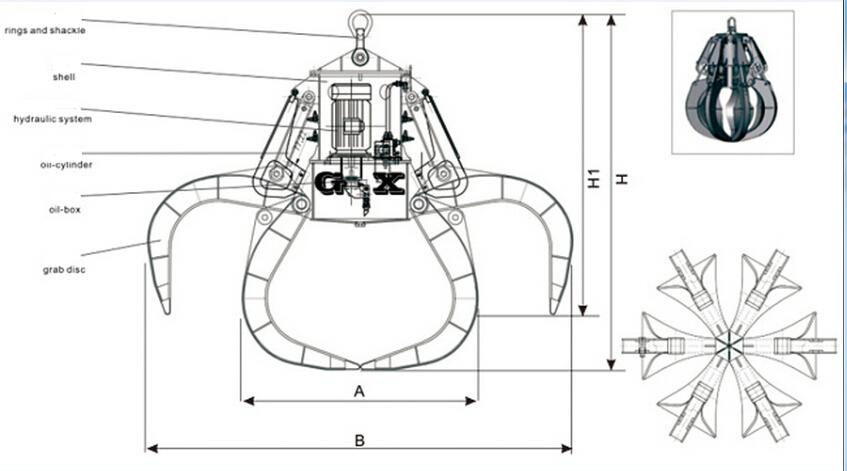

Hydraulic grab itself is fitted with a retractable roof structure, generally with the hydraulic cylinder drive, consisting of a plurality of jaw plate of hydraulic clamshell also called hydraulic claw. Hydraulic grab in hydraulic special devices are widely used, such as hydraulic excavator, hydraulic lifting tower etc..
Related product:
1.1 Doule Clamshell Hydraulic grab bucket

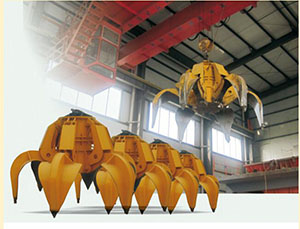

1.2 Orange peel grab bucket

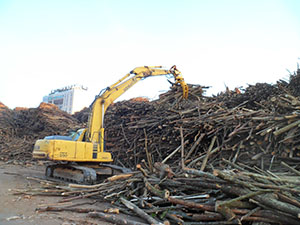

2.Log Grab, wood Grab, Excavator garb
▪ Save labor and greatly improve the efficiency. Ih efficiency with grab= 80h efficiency of 16 workers without grab.
▪ Improve production safety and greatly reduce the personal injury accidents

3. Mechanical grab

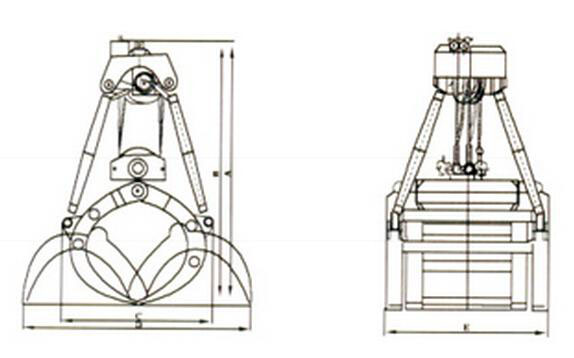

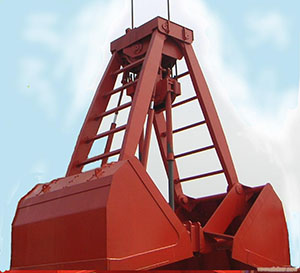

Mechanical grab itself no configuration retractable roof structure, usually driven by ropes or the connecting rod force, according to the operating characteristics can be divided into four rope grab and single rope grab, the most commonly used is the double rope grab.
Four wire rope grab reliable work, convenient operation, high productivity, wide application.

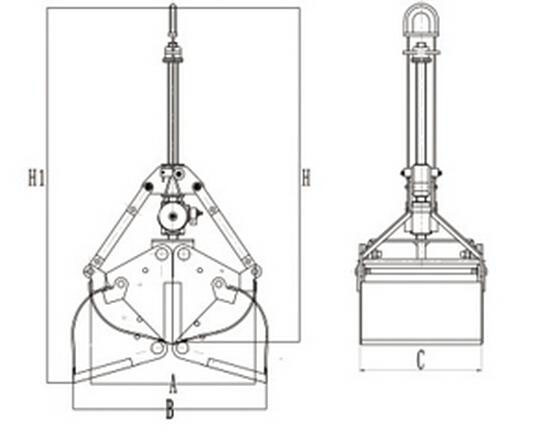

Single rope grab rope and support the opening and closing of a wire rope with rope. The winding mechanism of single rope grab is relatively simple, but low productivity, rarely use a large number of loading and unloading operations.

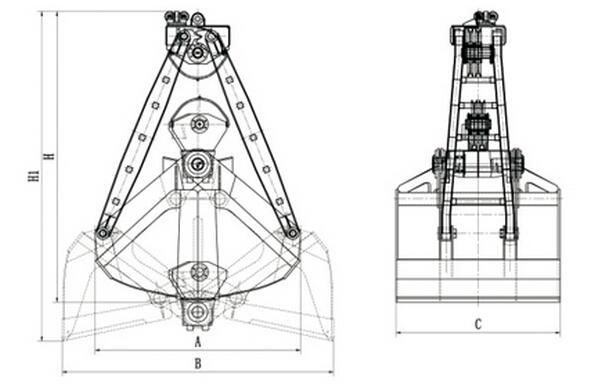

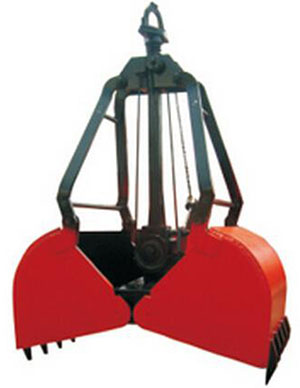

3.1 single rope mechanical grab

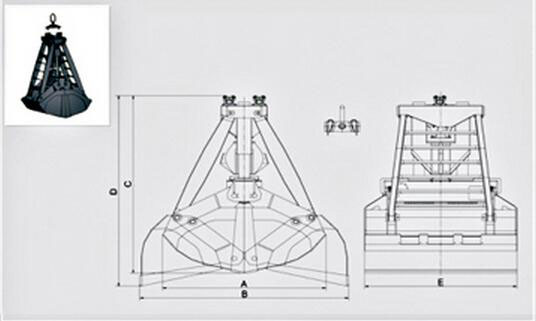

3.2 four ropes mechanical grab

4.Wireless remote control grab
Wireless remote control grab is a match in the single drum hoist fetching device, used for loading and unloading ore, coal, grain, fertilizer, industrial salt, aluminum and other bulk cargo.

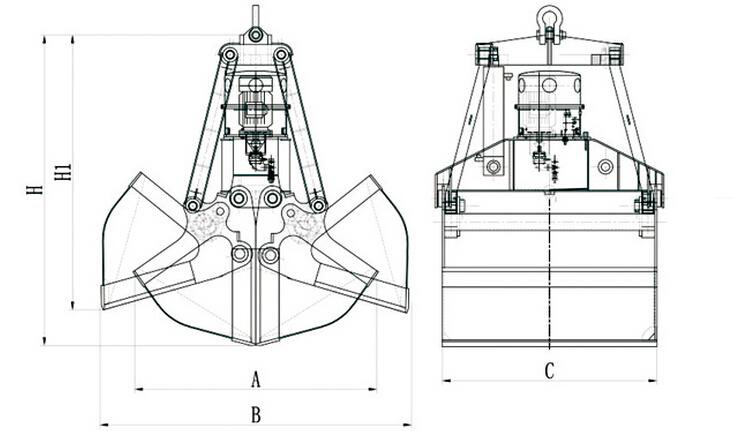

Wireless remote control grab skillfully will be combined with the wireless remote control technology and the most simple hydraulic technology application in the grab, grab a unique performance.

Safety notes:
▪ Operation by driver.
▪ Forbid to stay on the crane when working.
▪ At least 0.5 meters above the highest blockage on paths when holding heavy goods.
▪ Ban thrown items directly from the crane.
▪ Forbid pass from the head over.

Purchase Guide
1. Load capacity: (max goods weight)
2. The form of crane
3. Type of cargo
4. Quantity:
5. Destination port:
6. More requirements.

1. 1 Doule Clamshell Hydraulic grab bucket

Model	Volume (㎡）		Grab self weight (t)	Motor power (380v50Hz)(kw)	Operating pressure (Mpa)	Close time (s)	Crane lifting capacity (t)
Model	Full	Stop	Grab self weight (t)	Motor power (380v50Hz)(kw)	Operating pressure (Mpa)	Close time (s)	Crane lifting capacity (t)
KDY8-12	4.5	2.5	3.7	18.5	20	13	8
KDY10-12	5.5	3.5	4.5	22	20	17	10
KDY15-12	7	4.5	5	22	20	18	15
KDY20-12	10.0	6.8	7	28	20	18	20
KDY25-12	12	8.1	9.3	37	25	18	25
KDY30-12	18	10	14.5	55	20	19	32
KDY8-23	3	1.9	3.2	18.5	20	13	8
KDY10-23	4	2.2	4.2	18.5	20	18	10
KDY15-23	6.5	4	5.6	22	20	17	15
KDY20-23	8	5.4	6.5	28	20	18	20
KDY25-23	10	6.9	8	37	20	18	25
KDY32-23	12.5	8	10.5	45	20	18	32

1.2 Hyduaulic Orange peel grab bucket

Model	Volume (㎡）	Grab self weight (t)	Using crane ton (t)	Motor Power (kw)	Operating pressure (bar)	Close time (s)
KYG15	0.5	1.5	3.2	11	180	10
KYG17	0.6	1.7	3.2	11	180	11
KYG2	0.8	2	5	15	180	13
KYG25	1.0	2.5	5	15	180	14
KYG26	2.5	2.6	5	18.5	180	17
KYG38	3	3.8	10	18.5	180	20
KYG42	2	4.2	10	22	200	16
KYG43	5	4.3	10	22	200	19
KYG56	8	5.6	16	30	200	19
KYG7	4	7	20	37	200	17
KYG8	12	8	20	37	200	25
KYG9	17	9	25	45	200	26
KYG11	20	11	30	45	200	28

2.Log Grab

Model	Volume (㎡)	Grab self weight (t)	Material length (m)	rope number	rope dia. (mm)	rate
KM3-1	0.45	1.15	8	1	Φ13	3
KM3-2	0.45	1.2	8	2	Φ13	5
KM5-1	0.75	1.75	8	1	Φ16	3
KM5-2	0.75	2.2	12	4	Φ16	4
KM10-1	1.25	3.7	12	2	Φ22	5
KM10-2	1.25	3.9	12	4	Φ22	5
KM15-1	1.9	4.75	12	4	Φ28	4
KM16-1	2	5.8	12	4	Φ28	4

3.1 Single rope mechanical grab

Model	Volume (㎡)	Type	Grab self weight (t)	the rate of material (t/㎡)	the rate of pulley	the dia. of pulley (mm)	The dia. of steel rope (mm)
KU70	0.75	Heavy	1.9	2.5	2	Φ230	Φ15
KU71	0.3	Heavy	1	2.0-2.5	2	Φ200	Φ13
KU73	0.5	Heavy	1.5	2.0-2.5	2	Φ230	Φ15
KU74	0.75	Heavy	2.3	3.2	2	Φ230	Φ15
KU75	0.75	Heavy	2.1	3	2	Φ250	Φ15
KU77	1	Heavy	2.3	2.3	2	Φ250	Φ16
KU79	1.5	Heavy	3.1	2.8	2	Φ250	Φ21
KU64	2	Heavy	5.5	2.5	2	Φ300	Φ21
KU65	1.25	Heavy	4.25	3.2	2	Φ300	Φ21
KU80	9	Light	6.2	0.5-1.2	2	Φ400	Φ23.5
KU82	15	Light	10.3	1	2	Φ460	Φ28

3.2 four ropes mechanical grab

Model	Volume (㎡)	Type	Grab self weight (t)	the rate of material (t/㎡)	the rate of pulley	the dia. of pulley (mm)	The dia. of steel rope (mm)
KS075	0.75	Middle	1.15	≤1.7	3	Φ260	Φ13
KS010	1	Heavy	2.1	≤2	5	Φ360	Φ16
KS012	1.2	Heavy	2.3	≤2.5	5	Φ445	Φ20
KS015	1.5	Middle	1.95	≤1.6	4	Φ400	Φ18
KS020	2	Middle	2.2	≤1.5	3	Φ445	Φ20
KS025	2.5	Light	2.3	≤1.0	4	Φ445	Φ21.5
KS030	3	Light	2.3	≤1.0	4	Φ445	Φ24
KS050	5	Light	4.2	≤1.0	5	Φ560	Φ28
KS060	6	Light	4.3	≤0.6	4	Φ560	Φ28
KS070	7	Light	7	≤1.2	3	Φ650	Φ28
KS012	12	Middle	11	≤1.8	4	Φ880	Φ36

4.Wireless remote control grab

Model	Volume (㎡)	Grab self weight (t)	The dia. of pulley (mm)	The dia. of steel rope(mm)	crane lifting capacity (t)
KYK10	5	5	445	24	10
KYK14	7	6.5	520	28	14
KYK16	8	7.5	520	28	16
KYK20	10	9	560	32	20
KYK25	13	10	650	36	25
KYK28	16	11	650	36	28
KYK35	20	15	720	40	35
KYK40	24	17	880	45	40
