Cable reel widely used in crane, lifting electromagnet, electric grab, electric flat car, electric buggy on mobile devices. Through field test for many years, product stability, resistance reliable widely used by units of praise.
▪ Main Cable reel categories: cantilever cable reel, constant torque cable reel, hysteresis type cable reel and spring cable reel.
▪ Altitude:≤2000M
▪ Working environment temperature: -30℃ ~ +45℃
▪ Elastic cable drum is suitable for ac 500v various portable electric equipment.

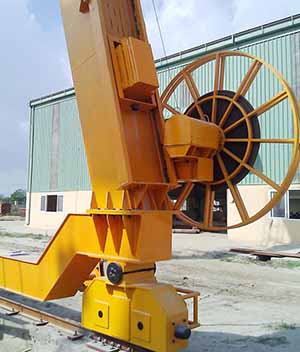

1. Cantilever cable reel characteristics:
▪ Cantilever cable reel power supply with simple, safe in operation and cable(hose)to pease is moderate, flexible, good synchronization performance. Not easy to connect the cable.
▪ The coiling force,can coiler of large size and long distance for the transmission cable (trachea).
▪ Drum set and reverse operation,convenient replacement of cable.
▪ The volume force is constant, the cable force and peace, good synchronization.

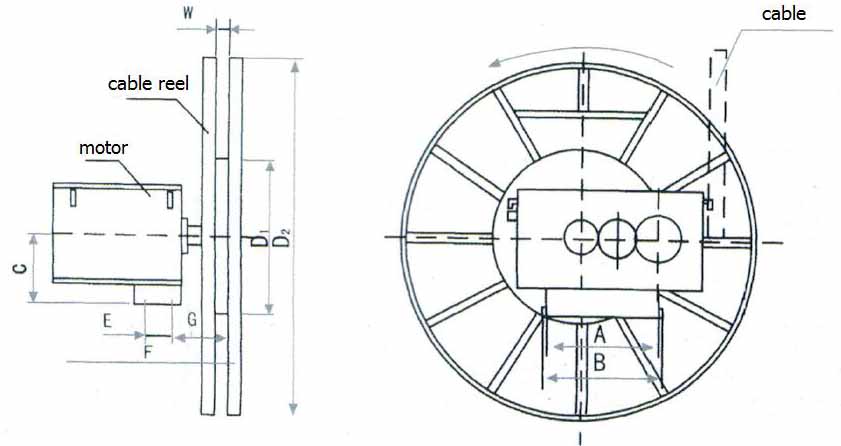

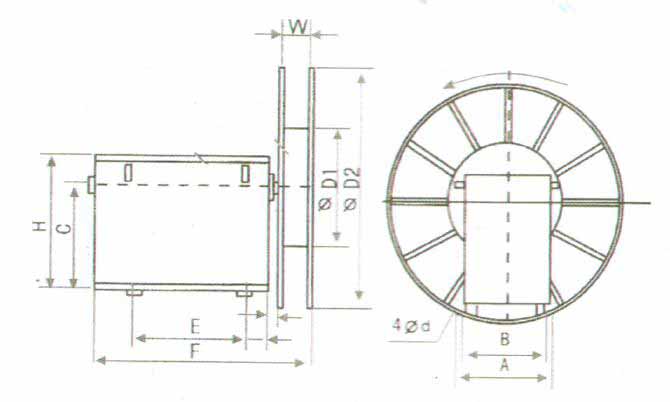

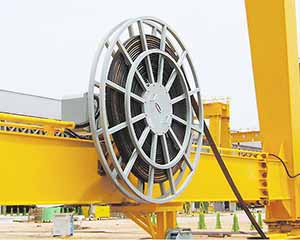

2.Constant torque cable reel

Constant torque cable reel is a torque motor as the driving force, rolling force. Suitable for cable (hose) heavier mobile longer condition. The main points for low pressure,high pressure,vertical, horzontal and product specifications. Please note: 1.The cable should be equipped by user  2.Cable reel should be change when choosing a flat cable.

Constant torque cable reel Features:
▪ The coiling force,can coiler of large size and long distance for the transmission cable (trachea).
▪ Torque motor blocking time is long,long service life of the motor,reliable work.
▪ Set the moment regulation and linkage control device.coiling intensity adjustment is convenient,flexible and synchronization.
▪ Using collector slipring brush structure transfer power, power supply, smooth.
▪ Drum set and reverse operation,convenient replacement of cable.

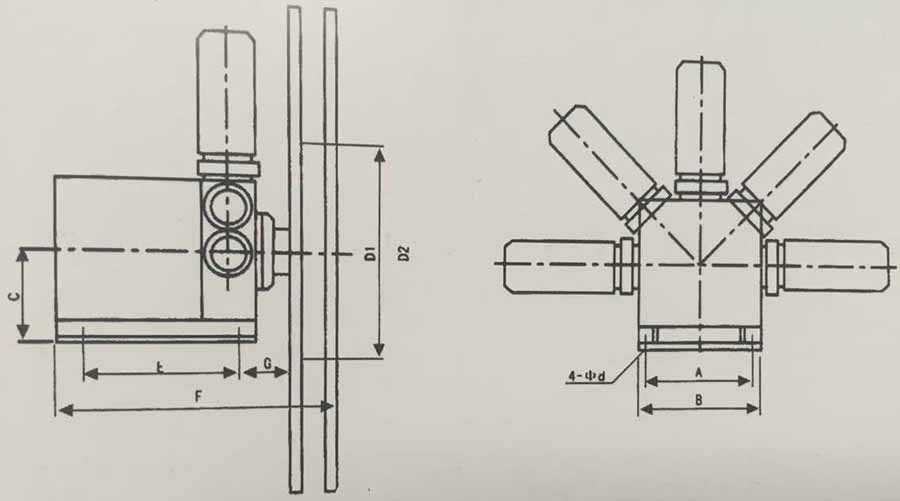

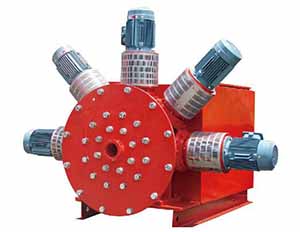

3.Hysteresis type cable reel

Hysteresis type cable reel series magnetic hysteresis type cable reel is a kind of electric constant torque drum. But the hysteresis drum can increase drive quotas,to cater for the need of winding of large size.Mainly suitable for gantry crane,door crane,loading machine and other large lifting equipment.

Hysteresis type cable reel Feature:
▪ The colling force,rolling power supply cable and specifications of long distance.
▪ The drive head torque ia adjustable,and can also increase the number of driving head to achieve the best rolling moment.
▪ The volume force is constant,the cable force and peace,good synchronization.

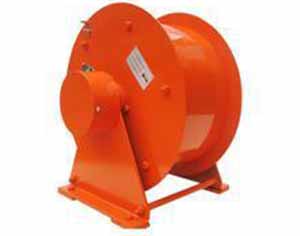

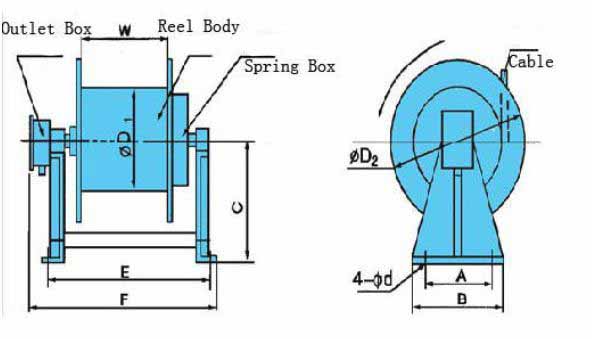

4.Spring cable reel

Spring cable reel Features:
▪ Itself does not consume electricity and reliable operation.
▪ Power supply with simple,safe in operation and cable(hose)to pease is moderate,flexible,good synchronization performance. Not easy to connect the cable.
▪ The collecting slip ring carbon brush structure transfer electricity,power supply continuous and smooth.
▪ Set the reversing mechanism,avoid reverse drum surface broken spring.
▪ Simple installation,easy maintenance,compact structure,beautiful appearance.
