European single girder overhead crane
1. European single girder overhead crane features:
▪ Each part of crane was designed into standard module, forming rich production portfolio
▪ Standardized module manufacture ensures the stability of product quality, and shorten the delivery time
▪ It adopts detachable connection between modules, convenient transportation and installation
2. European single girder overhead crane advantages:
▪ Height:Reduce 20%-30% compared with the traditional crane
▪ Wheel pressure:Reduce 15%~20%
▪ Load weight:Reduce 20%~30%
▪ Size:small size, increase the working area.
▪ Structure:compact and reasonable structure, reduce workshop construction cost
3. Compared with usually single girder overhead crane,High safety:
▪ Overload limiter monitoring system;
▪ Automatic inspection system;
▪ Up and down limit switch;
▪ Imports of wire rope and electrical appliances
4.Two structure forms about european single girder overhead crane as below, About the specificatin, please see the specification item.
European overhead crane specification:

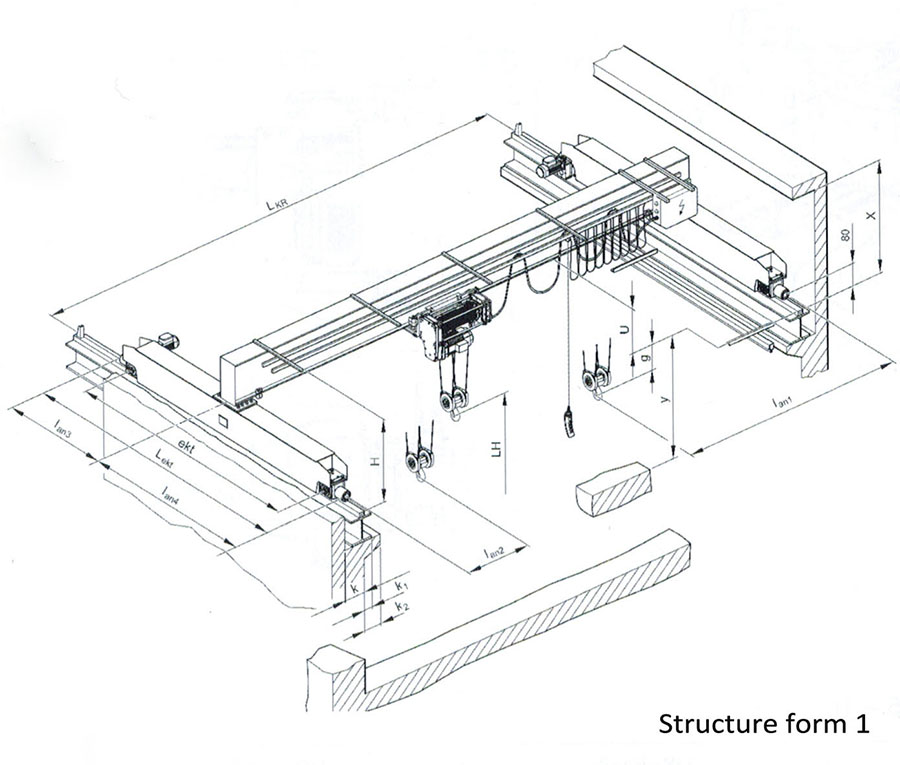

Structure form1: Lifting height: 15m Lifting speed: 5/0.8m/min Trolley speed: 5/20m/min
Main beam | Trolley | End beam | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LKR | GG | Rmax | X | H | U | Ian11) | Ian21) | g | y | Ian3/Ian4 | d | eKT | Iekt | DPZ | b | |||
VKR=40 | VKR=60 | VKR=40 | VKR=60 | VKR=40 | VKR=60 | |||||||||||||
4 | 2366 | 5198 | 910 | 810 | -342 | 890 | 1540 | 565 | 1369 | 1230 | 1230 | 160 | 2000 | 2460 | 2460 | 100 | 100 | 200 |
5 | 2550 | 5424 | 1010 | 910 | ||||||||||||||
6 | 2739 | 5591 | 1110 | 1010 | 1250 | 2500 | 130 | |||||||||||
7 | 2944 | 5728 | 919 | 819 | 560 | 1364 | ||||||||||||
8 | 3168 | 5849 | 923 | 823 | ||||||||||||||
9 | 3393 | 5956 | 1019 | 919 | ||||||||||||||
10 | 3620 | 6054 | 1410 | 1310 | 565 | 1369 | ||||||||||||
11 | 3805 | 6134 | 1219 | 1119 | 560 | 1364 | ||||||||||||
12 | 3977 | 6205 | ||||||||||||||||
13 | 4143 | 6271 | ||||||||||||||||
14 | 4449 | 6368 | 1223 | 1123 | ||||||||||||||
15 | 4638 | 6434 | 1319 | 1219 | ||||||||||||||
16 | 5057 | 6533 | 1323 | 1223 | 1480 | 1500 | 2500 | 2960 | 3000 | |||||||||
17 | 5257 | 6597 | 1419 | 1319 | 1530 | 3060 | 160 | |||||||||||
18 | 5622 | 6701 | 1423 | 1323 | ||||||||||||||
19 | 5997 | 6806 | 1419 | 1319 | ||||||||||||||
20 | 6877 | 7018 | 1636 | 1536 | -546 | 356 | 1568 | 1849 | 1879 | 200 | 3150 | 3698 | 3758 | 130 | 225 | |||
21 | 7519 | 7187 | 1631 | 1531 | ||||||||||||||
22 | 8042 | 7333 | 1723 | 1623 | ||||||||||||||
23 | 8300 | 7406 | ||||||||||||||||
24 | 8935 | 7572 | 1873 | 1773 | ||||||||||||||
25 | 9411 | 7677 | 1875 | 1775 | -548 | 354 | 1570 | 2274 | 2304 | 4000 | 4548 | 4608 | ||||||
26 | 9686 | 7752 | ||||||||||||||||
27 | 9961 | 7826 | ||||||||||||||||
28 | 10733 | 8025 | 1975 | 1875 | ||||||||||||||
29 | 12291 | 8419 | 1888 | 1788 | 2304 | 4608 | 160 | R160×240 |

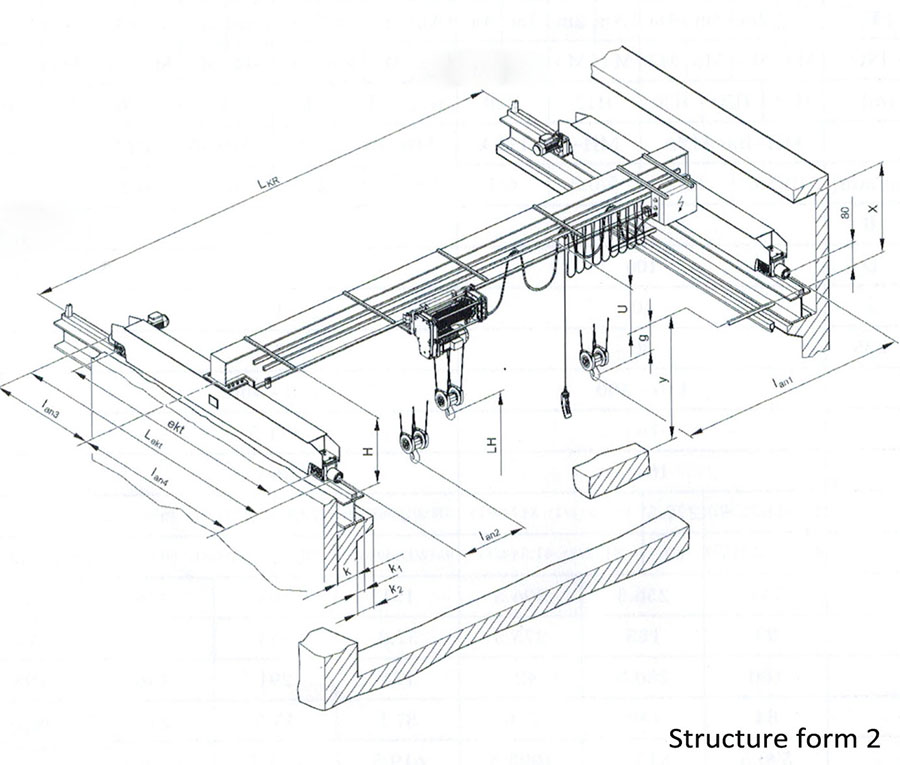

Structure form2: Lifting height: 15m Lifting speed: 5/0.8m/min Trolley speed: 5/20m/min
Main beam | Trolley | End beam | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LKR | GG | Rmax | X | H | U | Ian11) | Ian21) | g | y | Ian3/Ian4 | d | eKT | Iekt | DPZ | b | |||
VKR=40 | VKR=60 | VKR=40 | VKR=60 | VKR=40 | VKR=60 | |||||||||||||
4 | 2366 | 5198 | 802 | 702 | -234 | 890 | 1540 | 673 | 793 | 1230 | 1230 | 160 | 2000 | 2460 | 2460 | 100 | 100 | 200 |
5 | 2550 | 5424 | -134 | 773 | 893 | |||||||||||||
6 | 2739 | 5591 | -34 | 873 | 993 | 1250 | 2500 | 130 | ||||||||||
7 | 2944 | 5728 | 806 | 706 | *229 | 673 | 793 | |||||||||||
8 | 3168 | 5849 | 810 | 710 | ||||||||||||||
9 | 3393 | 5956 | 806 | 706 | -129 | 773 | 893 | |||||||||||
10 | 3620 | 6054 | 1068 | 968 | 0 | 907 | 1027 | |||||||||||
11 | 3805 | 6134 | 877 | 777 | 902 | 1022 | ||||||||||||
12 | 3977 | 6205 | ||||||||||||||||
13 | 4143 | 6271 | ||||||||||||||||
14 | 4449 | 6368 | 881 | 781 | ||||||||||||||
15 | 4638 | 6434 | 977 | 877 | ||||||||||||||
16 | 5057 | 6533 | 981 | 881 | 1480 | 1500 | 2500 | 2960 | 3000 | |||||||||
17 | 5257 | 6597 | 1077 | 977 | 1530 | 3060 | 160 | |||||||||||
18 | 5622 | 6701 | 1081 | 981 | ||||||||||||||
19 | 5997 | 6806 | 1077 | 977 | ||||||||||||||
20 | 6877 | 7018 | 1090 | 990 | 1849 | 1879 | 200 | 3150 | 3698 | 3758 | 130 | 225 | ||||||
21 | 7519 | 7187 | 1085 | 985 | ||||||||||||||
22 | 8042 | 7333 | 1177 | 1077 | ||||||||||||||
23 | 8300 | 7406 | ||||||||||||||||
24 | 8935 | 7572 | 1327 | 1227 | ||||||||||||||
25 | 9411 | 7677 | 2274 | 2304 | 4000 | 4548 | 4608 | |||||||||||
26 | 9686 | 7752 | ||||||||||||||||
27 | 9961 | 7826 | ||||||||||||||||
28 | 10733 | 8025 | 1427 | 1327 | ||||||||||||||
29 | 12291 | 8419 | 1340 | 1240 | 2304 | 4608 | 160 | R160×240 |
