1. QD Type Electric Double Girder Overhead Crane
Double girder overhead crane is most commonly lifting machine, also called double beam bridge crane. It is applied in factory, warehouse, logistics etc, it mainly consists of the double main beam, trolley, electrical equipment and traveling equipment. It’s strictly forbidden to use in such dangerous operating as easily combustible, explosive, corrosive(acid, alkali, planting, steam), electromagnetic, electric hoist, grab liquid, overloading, dust, etc.
2. QD Type Electric Double Girder Overhead Crane Parameters:
▪ Lifting capacity: 16/3.2ton, 20/5ton, 32/5ton, 50/10ton, 75/20ton, 80/20ton, 100/20ton, 125/32ton, 160/32ton, 200/60/10ton, 250/100ton, 400/150ton, 600/120ton
▪ Span: 10.5m, 13.5m, 19.5m, 22.5m, 28.5m, 31.5m 33m....
▪ Lifting height: 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m...
▪ Working system: A5 A6
▪ Crane traveling speed: 20m/min
3. QD Type Electric Double Girder Overhead Crane Safety features:
▪ Overload limit and alarm display
▪ Load weight and display
▪ Lifting point three-dimensional positioning and display
▪ To prevent the collision between with cross crane
▪ Single small owner main hook hook distance variable
▪ PLC control and fault detection, display, record and print system

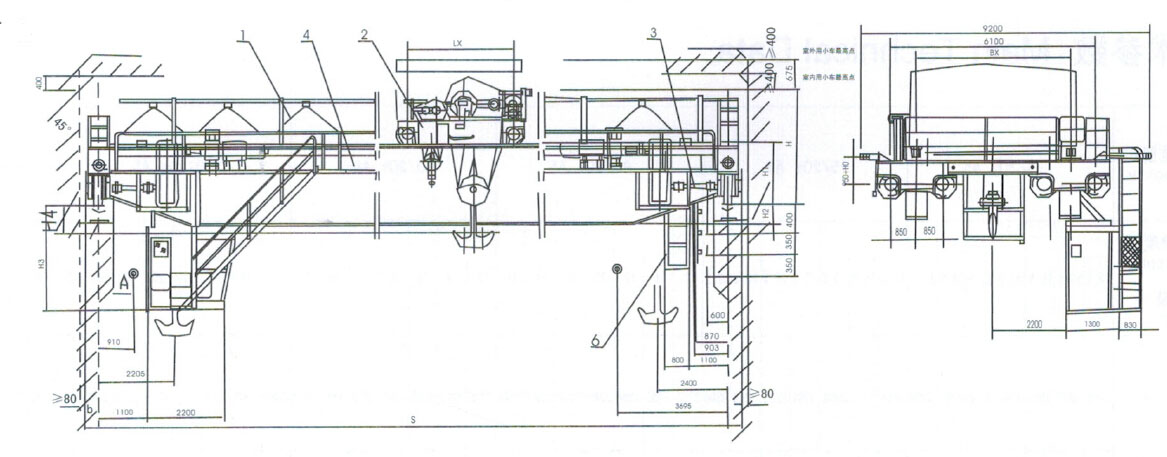

4. Double girder Overhead crane drawing:
5. Double Girder Overhead Crane Detailed Parameters, Please see the parameters item.
6. About the double girder overhead crane spare parts, working environment, packing and delivery, payments and so on, Please see the FAQ, or send eamil to us.
Professional sales consultant will solve problem within 24hours.
| Load Capacity | Main hook lifting | t | 75 | 80 | 100 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aux hook lifting | 20 | 20 | 20 | ||||||||||||||||||||
| Span | m | 13 | 16 | 19 | 22 | 25 | 28 | 31 | 13 | 16 | 19 | 22 | 25 | 28 | 31 | 13 | 16 | 19 | 22 | 25 | 28 | 31 | |
| Lifting height | m | 6、8、10、12、14、16、20 | |||||||||||||||||||||
| m | 6、8、10、12、14、16、20、22 | ||||||||||||||||||||||
| Working system | A5 | A6 | A5 | A6 | A5 | A6 | |||||||||||||||||
| Speed | Main hook lifting | m/min | 5 | 6 | 5 | 6 | 5 | 6 | |||||||||||||||
| Aux hook lifting | 9.23 | 9.23 | 9.23 | 9.28 | 7.2 | 7.2 | |||||||||||||||||
| Trolley travelling | 32 | 32 | 32 | 32 | 33.86 | 33.86 | |||||||||||||||||
| Crane travelling | 55 | 55 | 68 | 68 | 55 | 5 | 68 | 68 | 64.9 | 65.9 | 66.2 | 66.7 | |||||||||||
| Motor | Main hook lifting | Type/kw | YZR315M-10/85 | YZR355M-10/90 | YZR315M-10/85 | YZR355M-10/90 | YZR315M-10/85 | YZR355M-10/90 | |||||||||||||||
| Aux hook lifting | YZR250M1-8/35 | YZR250M1-8/35 | YZR250M1-8/35 | YZR250M1-8/35 | YZR225M1-8/26 | YZR225M1-8/26 | |||||||||||||||||
| Trolley travelling | YZR160L-6/13 | YZR160L-6/13 | YZR160L-6/13 | YZR160L-6/13 | YZR180L-8/13 | YZR180L-8/13 | |||||||||||||||||
| Crane travelling | YZR200L-6/26×2 | YZR200L-6/22×2 | YZR200L-6/22×2 | YZR200L-6/22×2 | YZR200L8/18.5×2 | YZR250M1-8/30×2 | |||||||||||||||||
| steel track recommended | QU100 | QU100 | QU100 | QU120 | |||||||||||||||||||
| Power supply | 3-phase A.C 380v 50Hz | ||||||||||||||||||||||
