Pillar jib crane has the advantages of novel structure, reasonable, simple and convenient operation, flexible rotation, and the advantages of operating space is large, is energy saving and efficient material handling equipment, can be widely used in factories and mines, workshop production line, assembly line and machine of upper and lower work and weight lifting warehouse, dock, etc.
BZZ Column cantilever crane
► About BZZ column cantilever crane
BZZ column cantilever crane is the extension of the product column jib crane, the machine uses a rotary bearing and variable cross section beam structure,
lifting up to 2.5-16 meters, the radius of gyration 7-12 meters.
► BZZ column cantilever crane application
The machine applies to the metallurgical, railway, port and machinery manufacturing and other industries material lifting operation.
► Advantages of BZZ column cantilever crane
Many occasions to replace bridge crane and gantry crane operation, less investment, high efficiency, the products in the market has won praise.
► Related information about BZZ column cantilever crane drawing and BZZ column cantilever crane Parameters,Please see the other page Parameter,
thanks!
BZD type settles the pillar type arm crane
► BZD pillar arm crane application
Arm crane widely used in machinery, automobile, shipbuilding and other modern industrial production line, assembly line, assembly line and warehouse, wharf, laboratories and so on material lifting operation.
► Working principle of BZD type pillar type arm crane
The column base is fixed in the concrete foundation with anchor bolts, driven by a motor speed reducer drives the cantilever rotary, electric hoist from the operation
on the cantilever beam.
► Advantages of BZD type pillar type arm crane
Has the advantages of simple structure, convenient operation, little space occupation, large operating range characteristics etc.. Enterprises to improve efficiency, improve the working conditions of the ideal lifting equipment.
► Related information about BZD type pillar type arm crane drawing and BZD type pillar type arm crane Parameters,Please see the other page Parameter,
thanks!
► Purchase Guide
1.Load capacity: (max goods weight)
2. Lifting height:
3. Working voltage: (phase, voltage, Hz )
4. Working radius:
5.Slewing angle：
Please try to confirm the above information, if difficult to you, please see the specification table for your reference or tell us your questions. We will choose a suitable products for you.

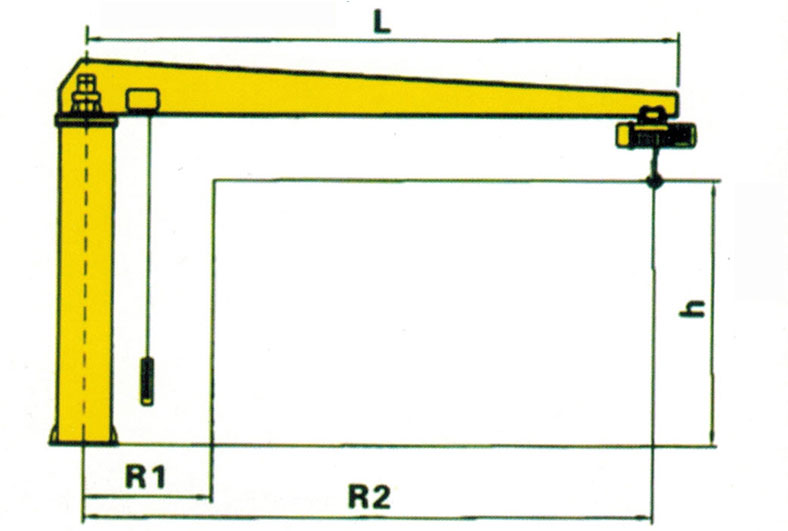

BZZ column cantilever crane Parameters
|
Type |
Load capacity(kg) |
Lifting speed(m/min) |
Rotary angle(°) |
L (mm) |
R2 (mm) |
R1 (mm) |
H (mm) |
|---|---|---|---|---|---|---|---|
|
BZZ1(7-12) |
1000 |
8m |
Any angle |
7-12 |
6.8-11.8 |
1.5 |
2.5-12 |
|
BZZ2(7-10) |
2000 |
8m |
Any angle |
7-10 |
6.8-9.8 |
1.5 |
2.5-12 |
|
BZZ2(7-12) |
2000 |
8m |
Any angle |
11-12 |
10.8-11.8 |
1.5 |
2.5-12 |
|
BZZ3-(7-10) |
3000 |
8m |
Any angle |
7-10 |
6.8-9.8 |
1.5 |
2.5-12 |
|
BZZ3-(11-12) |
3000 |
8m |
Any angle |
11-12 |
10.8-11.8 |
1.7 |
2.5-12 |
|
BZZ5-(7-12) |
5000 |
8m |
Any angle |
7-12 |
6.8-11.8 |
1.7 |
2.5-12 |
|
BZZ7-7-10 |
7000 |
0.8m |
Any angle |
10 |
7 |
2 |
3-8 |
|
BZZ10-5 |
10000 |
0.8m |
Any angle |
5.4 |
5 |
2 |
3-5 |
BZD type pillar type arm crane drawing
BZD type pillar type arm crane Parameters
| Type | BZD0.25 | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | ||
| Load capacity | t | 0.25 | 0.5 | 1 | 2 | 3 | 5 | |
| Lifting height | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Min slewing Radius | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Max slewing Radius | mm | 1100 | 1250 | 1300 | 1300 | 1200 | 1100 | |
| Rotary angle | ° | 360 | 360 | 360 | 360 | 360 | 360 | |
| Lifting speed | m/min | speed | 4;10;8 | 5;10;8 | 5;8 | 4;8 | 8 | 8 |
| slow | 1;2.5;0.8 | 1.25;2.5 | 1.25;2;0.8 | 1;0.8 | 0.8 | 0.8 | ||
| Overall height | mm | 3650 | 3900 | 4100 | 4230 | 5500 | 5750 | |
| Overall width | mm | 3340 | 3363 | 3400 | 3415 | 4450 | 4600 | |
| Travelling speed | speed | 14;20 | 14;20 | 14;20 | 14;20 | 20 | 20 | |
| Slewing speed | r/min | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | |
| Weight | kg | 950 | 1100 | 1800 | 2100 | 3500 | 4500 | |
