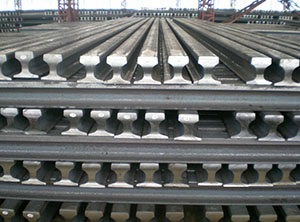

Steel rail is a metal groove or ridge that holds, guides, and reduces friction for a moving device or apparatus. It's paved with strip steel route for driving the train, trolley, etc.
The standard steel rail usually composed by two joint bars, rails fixed to the sleepers, rail pad under the sleepers for the road, including roadbed, rail connection parts, etc.
▪ Steel Rail’s type is roughly quality kg per one meter.
▪ At present, China's railway rail type mainly has 75 kg/m, 60 kg/m, 50 kg/m and 43 kg/m,38kg/m,24kg/m,. rail length has 6m,6.5m,9m,9.5m,10m,10.5m,12m,12.5 m and 25m;
▪ Light specifications from 4kg to 30kg, materials are 55Q / Q235;
▪ Heavy rail specifications from 38kg to 60kg, materials are U71Mn / 50Mn, etc;
▪ Crane rail specifications QU70, QU80, QU100, QU120, material U71Mn / 75V.

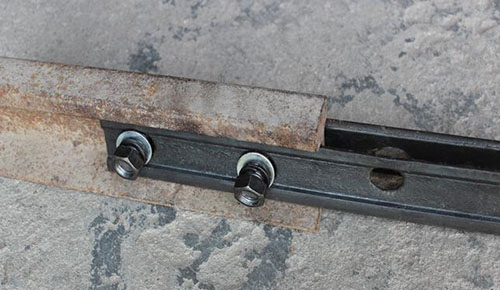

2. Joint bar

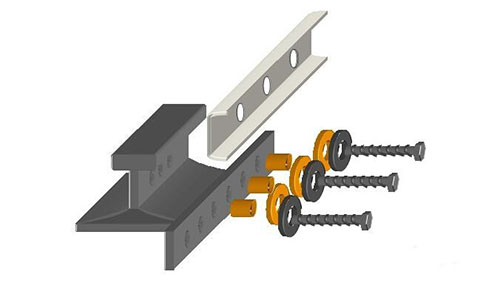

Joint bar also known as fish plate to provide road plywood rolling (material: B7), casting (material: qt400) 18kg/m, 20kg/m, 24kg/m, 38Kg/m, 43kg / m, 50Kg/m, 60kg / m rail connection accessories with fish plate (plywood joints), fish bolts, gauge baffle plate and gusset plate, iron base, baffle block, and according to samples or drawings for production of special shaped fish plate.
3.Pressing Plate and rail press
Welding type rail fixed part, also known as welding type pressing plate, from the upper cover plate, base plate, adjusting plate, bolts, nuts, flat washers, spring washers 7 parts.

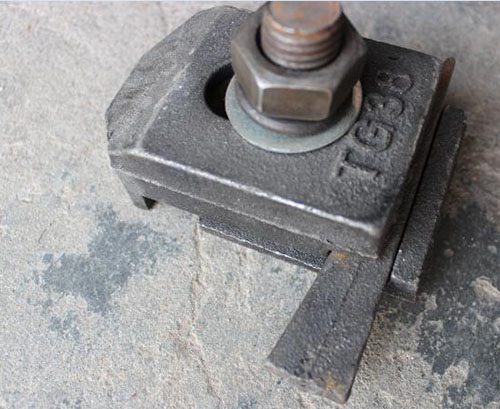

3.1 pressing plate

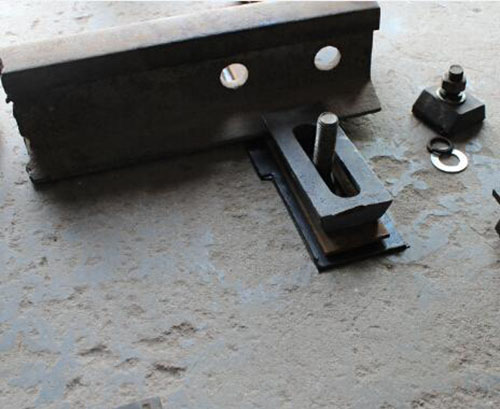

3.2 rail press

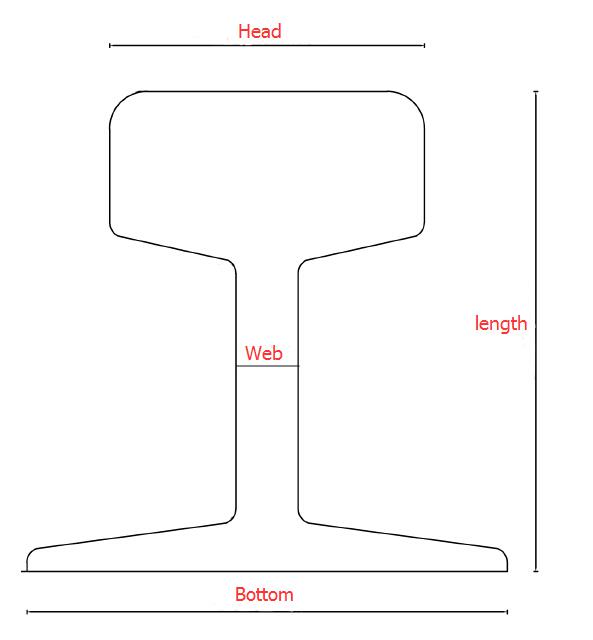

1.Steel Rail (crane rail)
Tape |
Model |
Height(mm) |
Bottom (mm) |
Head (mm) |
Web(mm) |
Length(m) |
---|---|---|---|---|---|---|
Light rail |
8kg/m |
65 |
54 |
25 |
7 |
6/10 |
18kg/m |
90 |
80 |
40 |
10 |
6/10 |
|
24kg/m |
107 |
92 |
51 |
10.8 |
6/10 |
|
Heavy rail |
38kg/m |
134 |
114 |
68 |
13 |
12.5/25 |
43kg/m |
140 |
114 |
70 |
14.5 |
12.5/25 |
|
50kg/m |
152 |
132 |
70 |
15.5 |
12.5/25 |
|
60kg/m |
176 |
150 |
73 |
16.5 |
12.5/25 |
|
Crane rail |
QU70 |
120 |
120 |
70 |
28 |
9/9.5 10/10 |
QU80 |
130 |
130 |
80 |
32 |
11/11.5 |
|
QU100 |
100 |
150 |
100 |
38 |
12/12.5 |
2.Joint bar
Name |
Railway fastener Rail Fishplate |
|||
---|---|---|---|---|
Type |
Length /Diameter |
Weight(Kg) |
Material |
|
115RE |
4 hole- 24″ |
17.04 |
45#
Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
50#
Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
115RE |
6 hole -36″ |
25.56 |
||
132-136RE |
4hole-24″ |
17.75 |
||
132-136RE |
6hole-36″ |
26.63 |
||
UIC60 |
4 hole - 630/Dia.26 |
18.07 |
||
UIC60 |
4 hole-600/Dia.28 |
17.47 |
||
UIC60 |
4 hole - 630/Dia.25 |
18.1 |
||
UIC54 |
4hole |
14.34 |
||
UIC54 |
6hole- 800 |
19.94 |
||
BS80A |
4hole |
6.5 |
||
BS90A |
685.8 / Dia.26 |
13.23 |
||
BS90A |
792.9/Dia.26 .2 |
15.34 |
||
90/91LB |
4 hole |
18.08 |
||
90/91LB |
6hole |
19.9 |
||
50Kg |
4hole |
14.3 |
||
50Kg |
6hole |
19.5 |
||
BS75R |
4hole |
6.56 |
||
BS60A |
4hole |
5.61 |
||
S49 |
4 hole |
9.71 |
3.1 pressing plate
Level of bolt |
4.8/8.8 |
---|---|
Cover material |
ductile iron/cast steel base |
Material |
cast steel |
Weight |
1.6 KG (normal) |
Match |
cover, base, adjust the shaw, bolt, nut, spring washers, flat pad. |
Pressure gauge |
WJK - TG24, WJK - TG30 |
Pressure gauge shape number |
light rail |
Heavy rail pressure rail |
WJK - TG38, WJK - TG43 WJKTG50 crane rail |
pressure rail |
WJK - QU80, WJK - QU100, WJK - QU120 |
3.2 rail press
Level of bolt |
4.8/8.8 |
---|---|
Cover material |
ductile iron/cast steel base |
Material |
cast steel |
Weight |
1.6 KG (normal) |
Match |
cover, base, adjust the shaw, bolt, nut, spring washers, flat pad. |
Pressure gauge |
WJK - TG24, WJK - TG30 |
Pressure gauge shape number |
light rail |
Heavy rail pressure rail |
WJK - TG38, WJK - TG43 WJKTG50 crane rail |
pressure rail |
WJK - QU80, WJK - QU100, WJK - QU120 |
