- Description
- Parameters
Lifting Electromagnetic Suitable for transferring cast ingots,steel balls and various of scrapped steels. it excita modes include constant Volltage mode,strong excitation mode and overexcitation mode. it is an ideal lifter which economizes energy, labor easy and rate of production improving. Lifting Electromagnetic Main categories: lifting electromagnet for Billet,Girder Billet and Slab, The circular magnet, The oval magnet, The square magnet

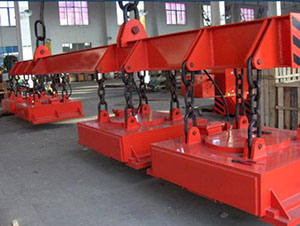

1.lifting electromagnet for Billet,Girder Billet and Slablifting electromagnet for Billet,Girder Billet and Slab uses the unique magnetic circuit and packet structure of the double line, with good heat dissipation, magnetic penetration depth, can penetrate the characteristics of multi-layer air gap, capable of lifting did not make bundles rolling bar, flat iron, angle, and so on. There are room temperature and high temperature type.

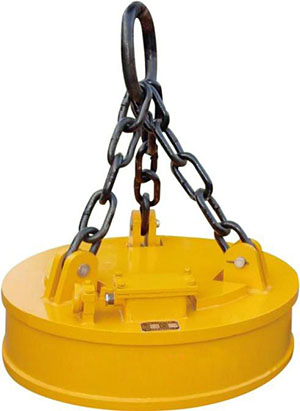

2.The circular magnetThe circular magnet series is used for ceiling hanging cast ingot, ball, iron, mechanical chip; casting plant all kinds of miscellaneous iron, scrap, cropping; packing scrap iron. In the slag treatment process in advance, for removing large pieces of iron, in the coal washery lifting iron etc.. Dual chamber type outlet box, ad hoc ultra thick box protection board, lead to cable anti twist settings.

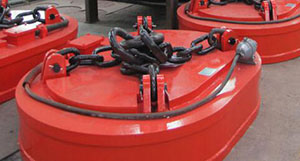

3.The oval magnetThe oval magnet series is used for car shaped container within narrow efficient handling of waste iron and steel. According to the shape of the carriage tailored for hoisting steel scrap, general electromagnet design into two semicircular structure, so it is also called elliptical solenoid.

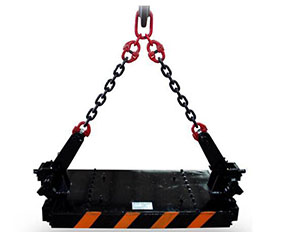

4.The square magnetThe square magnet series of the most widely used oblong electromagnets, and is mainly suitable for used for lifting the billet, ingot and large blooms and can also be used to hang round billet, steel and so on. For different types of steel, the use of different magnetic circuit design. It is an ideal lifter which economizes energy, labor easy and rate of production improving.
1.Lifting Electromagnetic Parameters:
▪ Rated vlotage DC-220V
▪ Duty cycle TD-60%（Exceed 60%,pls choose high frequency type）
▪ Choice according to the ambient temperature:
Normal temperature--≤150℃
High temperature--150℃≤T≤600℃
Super high temperature--≥600℃
2.Lifting Electromagnetic Characteristics:
▪ Tailored for the box shaped container narrow
▪ Light self-weight and large suction
▪ Standardization.seriation,magnetic penetrationdepth
▪ The movable magnetic pole structure
▪ Coiled steel without damage,the most ideal lifting tool and owned two patents.
▪ Customize acoording to your inquiry.
3.Lifting Electromagnetic Safety notes:
▪ Clean surface before using to avoid scratch.
▪ Beware of collisions to affect the accuracy.
▪ Wipe surface after using to avoid rust.
▪ Ban thrown items directly from the crane.
▪ Using magnetic separately should be have a ground wire to avoid leakage.
4. Purchase Guide
1.The specification of installed crane.(tonnage,hoist height,brake type of hook,capacity)
2.Ambient temperature
3.Attached materials,weight and size
4.Crane classification group
5.When operation is in liquid,please choose diving type and provide us with liquid mediud and diving depth.
|
Model |
MW04-17T |
MW04-22T |
MW04-32T |
MW04-40T |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Overall dimension diagram |
A |
mm |
165 |
216 |
318 |
406 |
||||||||
|
B |
113 |
147 |
178 |
480 |
||||||||||
|
C |
30 |
40 |
60 |
100/55 |
||||||||||
|
D |
10 |
16 |
25 |
16 |
||||||||||
|
Weight |
Kg |
7 |
15 |
30 |
75 |
|||||||||
|
Consumption power |
Kw |
0.1 |
0.2 |
0.25 |
0.4 |
|||||||||
|
Max dimension (L×W) for single unit operation |
Kg |
1200×1200 |
1400×1400 |
1600×1600 |
2500×2500 |
|||||||||
|
Max dimension (L×W) for multi units operation |
Kw |
600×1200 |
700×1400 |
800×1600 |
1000×2500 |
|||||||||
|
Attraction force |
Plate thickness |
mm |
3.2 |
6 |
6 |
10 |
10 |
20 |
12 |
32 |
||||
|
Peripheral fixing |
Kg |
over 100 |
over 200 |
over 300 |
over 600 |
over 800 |
over 2000 |
over 1200 |
over 2400 |
|||||
2.The circular magnet
|
Ype |
Current (A) |
Power |
Lifting capacity(KG) |
Weight (KG) |
Overall dimension(mm) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
steel ball |
steel ingot |
cutting |
A |
C |
F |
E |
G |
||||
|
MW5-70L/1 |
15 |
3.3 |
2500 |
380/200 |
120/100 |
490 |
700 |
800 |
160 |
90 |
30 |
|
MW5-80L/1 |
18 |
3.96 |
3000 |
480/250 |
150/130 |
620 |
800 |
800 |
160 |
90 |
30 |
|
MW5-90L/1 |
26.6 |
5.85 |
4500 |
600/400 |
250/200 |
800 |
900 |
1090 |
200 |
125 |
40 |
|
MW5-110L/1 |
35 |
7.7 |
6500 |
1000/800 |
450/400 |
1350 |
1100 |
1100 |
220 |
150 |
45 |
|
MW5-120L/1 |
45.5 |
10 |
7500 |
1300/1000 |
600/500 |
1700 |
1200 |
1140 |
220 |
150 |
45 |
|
MW5-130L/1 |
54 |
11.9 |
8500 |
1400/1100 |
700/600 |
2060 |
1300 |
1240 |
250 |
175 |
50 |
|
MW5-150L/1 |
71.2 |
15.6 |
11000 |
1900/1500 |
1100/900 |
2830 |
1500 |
1250 |
350 |
210 |
60 |
|
MW5-165L/1 |
75 |
16.5 |
12500 |
2300/1800 |
1300/1100 |
3200 |
1650 |
1390 |
370 |
230 |
75 |
|
MW5-180L/1 |
102.4 |
22.5 |
14500 |
2750/2100 |
1600/1350 |
4230 |
1800 |
1490 |
370 |
230 |
75 |
|
MW5-210L/1 |
129 |
28.4 |
21000 |
3500/2800 |
2200/1850 |
7000 |
2100 |
1860 |
400 |
250 |
80 |
|
MW5-240L/1 |
154 |
33.9 |
26000 |
4800/3800 |
2850/2250 |
9000 |
2400 |
2020 |
450 |
280 |
90 |
3.The oval magnet
|
Model |
Cold-state |
Cold-state |
overall dimension(mm) |
Mass |
Lifting capacity(KG) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
A |
B |
C |
F |
E |
G |
casting ingot |
turnings |
||||
|
MW61-400240L/1-75 |
40.01 |
181.9 |
4000 |
2400 |
1600 |
350 |
200 |
65 |
15600 |
7000/6000 |
3500/3000 |
|
MW61-380160L/1-75 |
30.36 |
138 |
3800 |
1600 |
2380 |
410 |
260 |
90 |
9700 |
6000/5000 |
3000/2500 |
|
MW61-300150L/1 |
32.3 |
146.7 |
3000 |
1500 |
1530 |
390 |
210 |
70 |
6086 |
3500/2800 |
1800/1500 |
|
MW61-300100L/1 |
23.5 |
107 |
3000 |
1000 |
1530 |
350 |
210 |
60 |
5800 |
3000/2400 |
1500/1200 |
|
MW61-23090L/1-75-QC |
18.5 |
84.3 |
2300 |
900 |
1800 |
250 |
180 |
60 |
3650 |
2500/1700 |
1300/900 |
|
MW61-220150L/1-75-QC |
20.8 |
94.5 |
2240 |
1540 |
1780 |
360 |
220 |
70 |
5600 |
3000/2400 |
1500/1200 |
4.The square magnet
|
Model |
Lifting capacity(kg) |
Min. |
Min. |
Min. |
Overall dimension(mm) |
Weight |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L×W(mm) |
A |
a |
B |
H |
h |
(kg) |
|||||
|
HLM4-200 |
200 |
20 |
3 |
440×185 |
440 |
350 |
185 |
525 |
112 |
50 |
|
|
HLM4-500 |
500 |
50 |
5 |
560×275 |
560 |
470 |
275 |
645 |
112 |
80 |
|
|
HLM4-1000 |
1000 |
100 |
8 |
720×355 |
720 |
540 |
355 |
760 |
165 |
140 |
|
|
HLM4-2000 |
2000 |
200 |
10 |
870×436 |
870 |
690 |
436 |
905 |
165 |
235 |
|
|
HLM4-3000 |
3000 |
500 |
14 |
1100×436 |
1100 |
950 |
436 |
1090 |
180 |
410 |
|
|
HLM4-5000 |
5000 |
1500 |
20 |
1270×565 |
1270 |
1010 |
565 |
1130 |
220 |
640 |
|
|
HLM4-10000 |
10000 |
3000 |
30 |
1270×1100 |
1270 |
1010 |
1100 |
1480 |
350 |
1450 |
|
